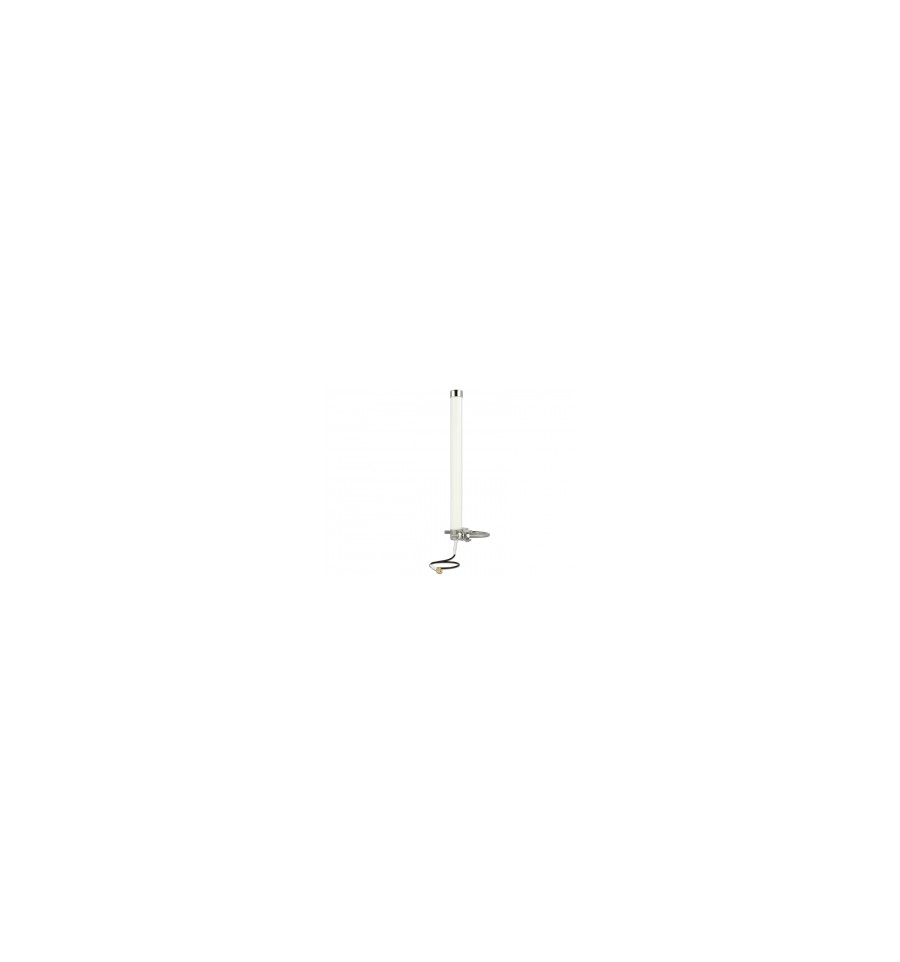

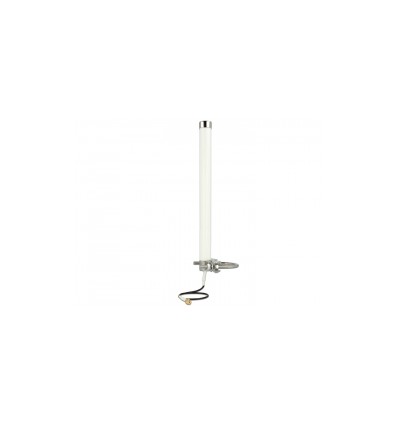

Delock LTE Antenna SMA 2.5 - 6 dBi omnidirectional fixed pole mount white outdoor

DELOCK

12433

New

Description
This LTE antenna can be installed indoors and outdoors and can be used  for reception of different LTE bands. It is fully compatible to UMTS, GSM, Bluetooth,  ZigBee, Z-Wave, DECT and WLAN 2.4 GHz.

More details

Description
This LTE antenna can be installed indoors and outdoors and can be used  for reception of different LTE bands. It is fully compatible to UMTS, GSM, Bluetooth,  ZigBee, Z-Wave, DECT and WLAN 2.4 GHz.

Specification
• Connector: SMA plug
• Frequency range: 698 - 960 MHz, 1710 - 2700 MHz
• LTE Band: 1 - 10, 12 - 20, 23, 25-30/33-41/44
• GSM 710/750/850/900/1800/1900
• UMTS Band I-VI/VIII-X/XII/XIII/XIX
• Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave
• Gain: 2.5 - 6 dBi
• Power handling: max. 100 W
• Impedance: 50 Ohm
• VSWR: 2.0:1
• Operating temperature: -40°C ~ 70°C
• Cable category: coaxial
• Cable type: RG-58
• Cable length: 30 cm
• Cable diameter: 5 mm
• Cable colour: black
• Protection class: IP55
• Body: GFK, UV protected
• Length: ca. 27.0 cm
• Diameter: ca. 2.2 cm
• Diameter SMA: ca. 0.9 cm

System requirements
• Device with SMA connector

Package content
• Antenna

Package
• Poly bag
