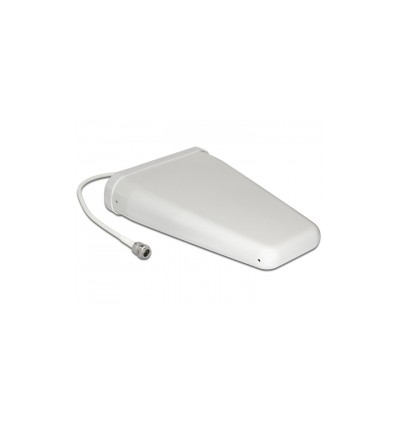

> >>Delock LTE Antenna N Jack 8 - 10.5 dBi directional white outdoor
Delock LTE Antenna N Jack 8 - 10.5 dBi directional white outdoor

Delock LTE Antenna N Jack 8 - 10.5 dBi directional white outdoor

DELOCK

12434

New

Description
This LTE antenna can be installed indoors and outdoors and can be used  for reception of different LTE bands. It is fully compatible to UMTS, GSM, Bluetooth,  ZigBee, Z-Wave, DECT and WLAN 2.4 GHz.

More details

Add to Compare

Description
This LTE antenna can be installed indoors and outdoors and can be used  for reception of different LTE bands. It is fully compatible to UMTS, GSM, Bluetooth,  ZigBee, Z-Wave, DECT and WLAN 2.4 GHz.

Specification

• Connector: N jack
• Frequency range: 698 - 960 MHz, 1710 - 2700 MHz
• LTE Band: 1-10/12-20/23/25-30/33-41/44
• GSM Band: 710/750/810/850/900/1800/1900
• UMTS Band: I-X/XII-XIV
• Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave
• Gain: 8 - 10.5 dBi
• Polarisation: vertical
• Horizontal beam form: 90°
• Vertical beam form: 60°
• Impedance: 50 Ohm
• VSWR: 1.5
• Operating power: max. 100 W
• Cable length: ca. 32 cm
• Cable diameter: ca. 5 mm
• Cable categorie: coaxial
• Cable type: RG-58
• Cable attenuation: 0.5 dB per meter @ 800 MHz
• Operating temperaturer: -40 °C ~ 70 °C
• Protection class: IP55
• ABS UV protected
• Dimension (LxBxH): ca. 295 x 210 x 65 mm



System requirements
• Device with free N connector

Package content
• LTE antenna
• Pole mounting kit

Package
• Box
