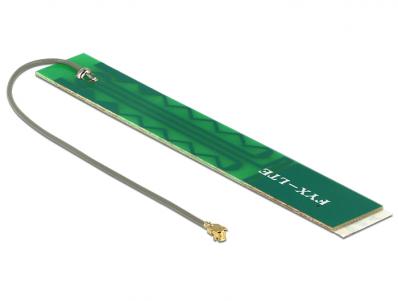

Delock LTE Antenna MHFU.FL-LP-068 Compatible Plug 3 dBi PCB Internal Omnidirectional Adhesive Mounting

Description:
This LTE antenna you can integrate into your devices and can be used for reception of different LTE bands. It is completely Bluetooth, UMTS, GSM, WLAN 2.4 GHz and ZigBee compatible.

Specification:
• Connector: miniature RF coaxial plug MHF (I-PEX), U.FL (Hirose) compatible
• LTE Band 1/2/3/4/5/6/7/8/9/10/12/13/14/15/16/17/18/19/20/24/25
• Frequenzy range: 690-960 / 1710-2700 Mhz
• Bluetooth/GSM/UMTS/WLAN 2.4GHz/ZigBee
• Gain: 3 dBi
• Impedance: 50 Ohm

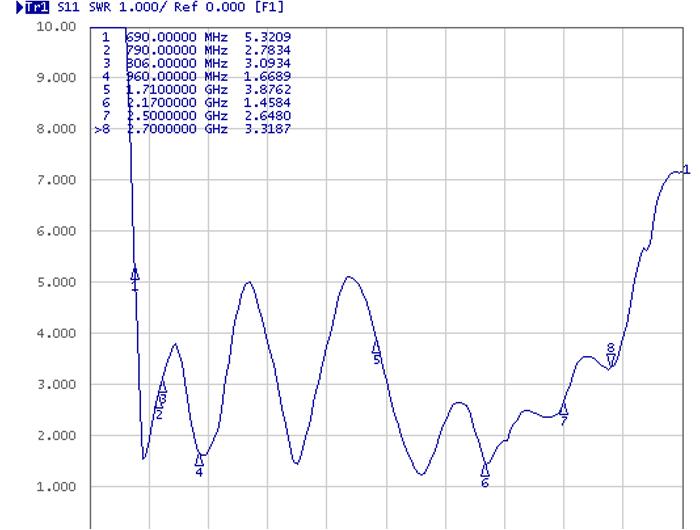

• VSWR: 2.0:1 max.
• Cable type: Coax 1.13 mm
• Cable colour: gray
• Cable length: ca. 100 mm
• Operating temperature: -10°C ~ 55°C
• Dimensions (LxWxH): ca. 96 x 14 x 0.9 mm

System requirements:
• Device with free MHF/U.FL-LP-068 connector

Package content:
• LTE antenna
