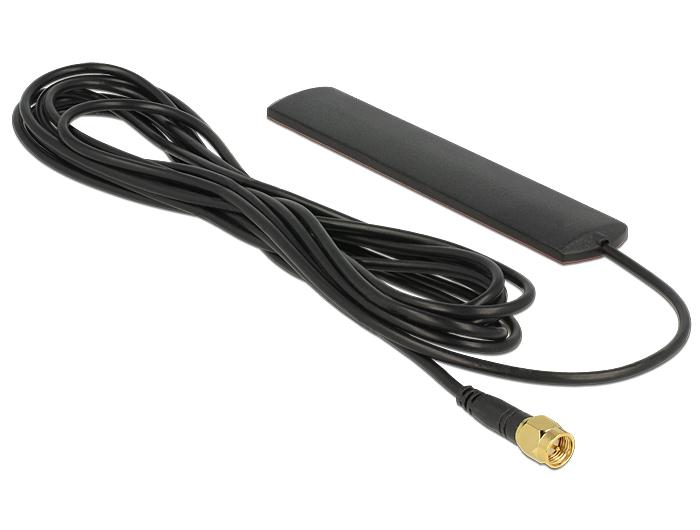

Delock LTE Antenna SMA 3 dBi Omnidirectional Fixed Black Adhesive Mounting

Reference 88987

Condition: New

This LTE antenna can be installed indoors and can be used for reception of different LTE bands. It is completely Bluetooth, UMTS, GSM, WLAN 2.4 GHz and ZigBee compatible.

More details

More info

Description:
This LTE antenna can be installed indoors and can be used for reception of different LTE bands. It is completely Bluetooth, UMTS, GSM, WLAN 2.4 GHz and ZigBee compatible.

Specification:
• Connector: SMA plug
• LTE Band 1/2/3/4/5/6/7/8/9/10/12/13/14/15/16/17/18/19/20/24/25
• Frequenzy range: 791-960 / 1710-2700 Mhz
• Bluetooth/GSM/UMTS/WLAN 2.4GHz/ZigBee
• Gain: 3 dBi
• Impedance: 50 Ohm

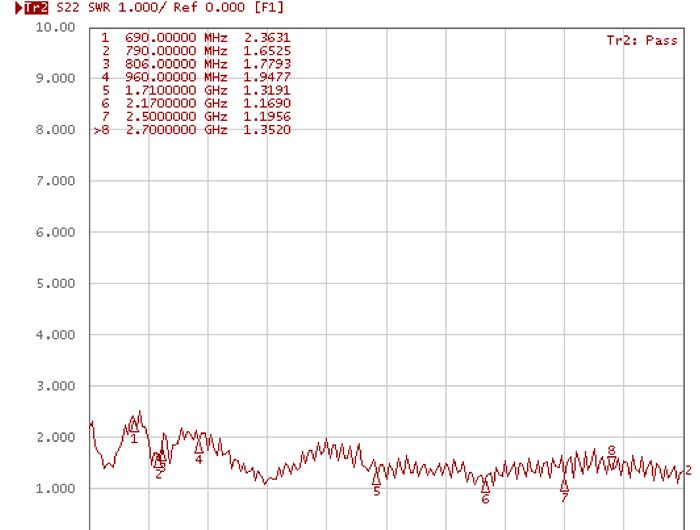

• VSWR: 2.0:1 max.
• Cable typ: Coax RG-174
• Cable colour: black
• Cable length: ca. 3 m
• Operating temperature: -10Â°C ~ 55Â°C
• Body: ABS UV resistant
• Dimensions (LxWxH): ca. 115 x 22 x 5 mm

System requirements:
• Device with free SMA connector

Package content:
• LTE antenna
