Delock LTE Antenna N Plug 2.5 dBi Omnidirectional Fix White Outdoor

DELOCK

88980

New

This LTE antenna can be installed outdoors and indoors and can be used for reception of different LTE bands. It is completely UMTS, GSM, Bluetooth, ZigBee and WLAN 2.4 GHz compatible

More details

Description:
This LTE antenna can be installed outdoors and indoors and can be used for reception of different LTE bands. It is completely UMTS, GSM, Bluetooth, ZigBee and WLAN 2.4 GHz compatible

Specification:

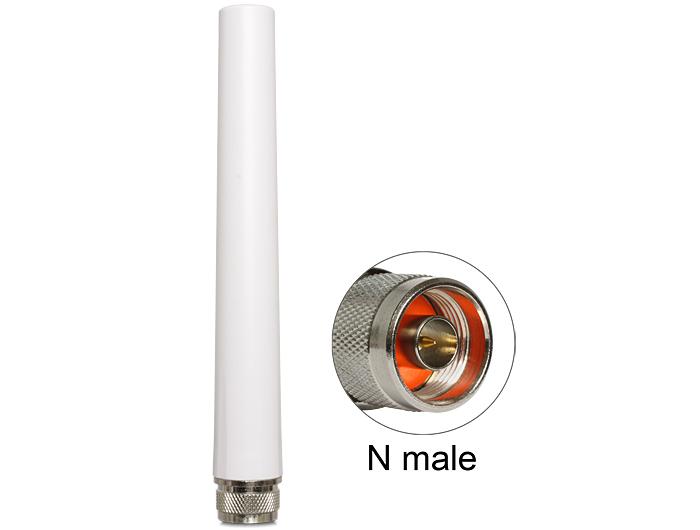

• Connector: N plug
• LTE Band: 1/2/3/4/5/6/7/8/9/10/12/13/14/15/16/17/18/19/20/23/25
• Frequenzbereich: 698-791 / 824-960 / 1710-2170 / 2500-2700 Mhz
• GSM/UMTS
• ZigBee 868~870 MHz, 902~928 MHz, 2405~2480 MHz
• WLAN 2.4 GHz
• Gain: 0.5 ~ 2.5 dBi
• Impedance: 50 Ohm
• VSWR: 3.5:1 max.
• Operating temperature: -40°C ~ 70°C
• Housing: ABS UV protect

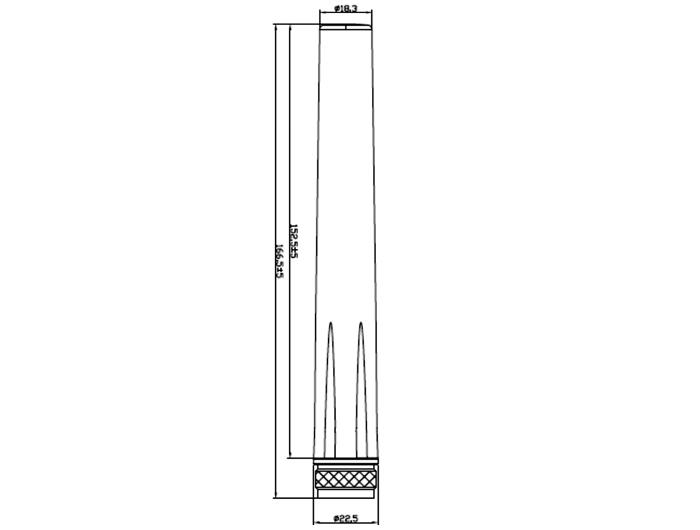

• Dimensions (LxØ): ca. 166.5 x 18.3 mm
• Diameter N plug: 22.5 mm

System requirements:
• Device with a free N connector

Package content:
• LTE antenna
