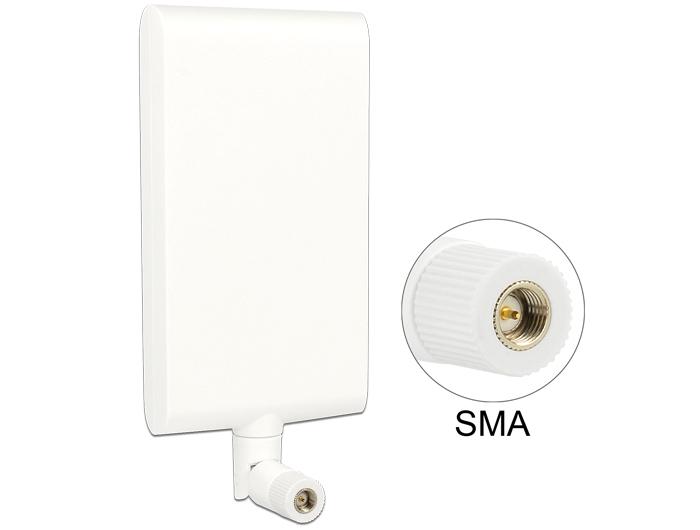

Delock LTE Antenna SMA 1 ~ 4 dBi Directional Rotatable With Flexible Joint White

DELOCK

88972

New

This LTE antenna can be installed indoors and can be used for reception of different LTE bands. It is completely UMTS, GSM, Bluetooth and WLAN 2.4 GHz compatible.

More details

Description:
This LTE antenna can be installed indoors and can be used for reception of different LTE bands. It is completely UMTS, GSM, Bluetooth and WLAN 2.4 GHz compatible.

Specification:
• Connector: SMA plug
• LTE Band: 1/2/3/4/5/6/7/8/9/10/12/13/14/15/16/17/18/19/20/23/25
• 698~787 MHz, 791~960 MHz, 1710~2170 MHz, 2500~2700 MHz
• GSM/UMTS
• Bluetooth
• WLAN 2.4 GHz
• ZigBee 868~870 MHz, 902~928 MHz, 2405~2480 MHz
• Gain: 1~4 dBi
• Impedance: 50 Ohm

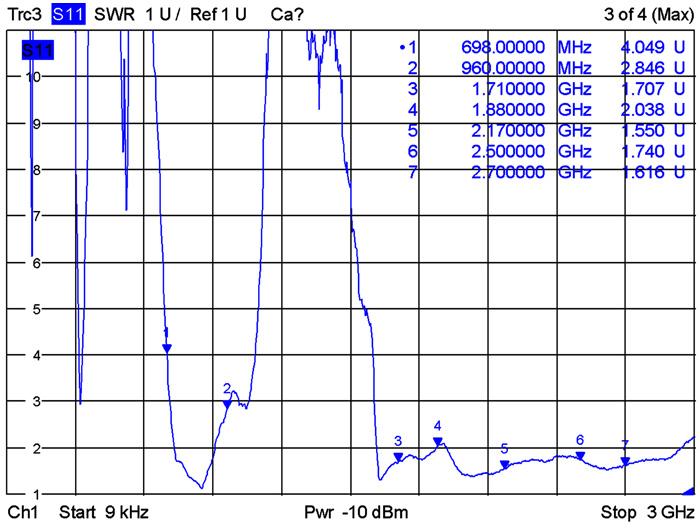

• VSWR: 3.0:1 max.
• Operating temperature: -10°C ~ 55°C
• Housing: ABS UV protect

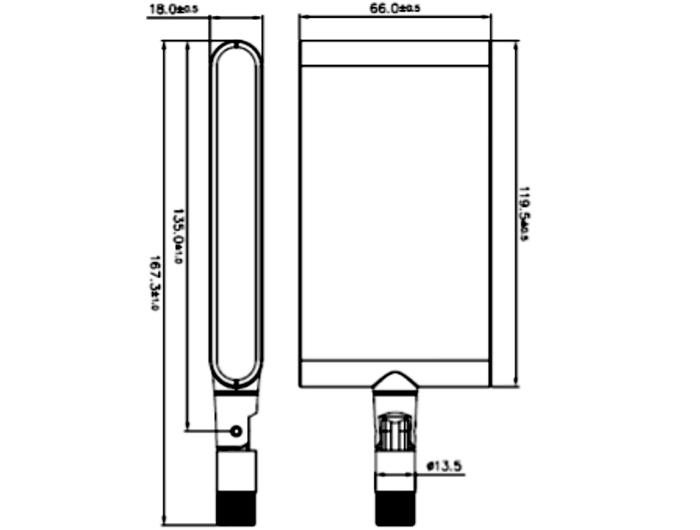

• Dimensions (LxWxH): ca. 167.3 x 66.0 x 18.0 mm

System requirements:
• A device with free SMA connector

Package content:
• LTE antenna
