Description:

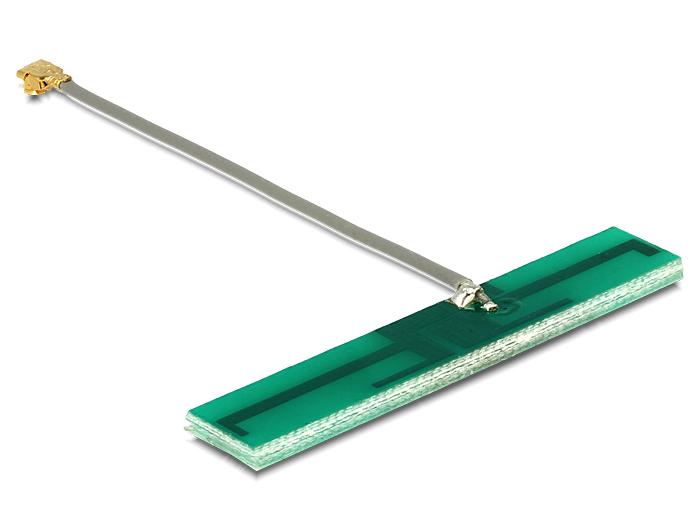

This antenna you can integrate into your devices with MHF / U.FL compatible connection to receive and send WLAN and Bluetooth signals.
Specification:
• Internal WLAN antenna PCB
• Connector: miniature RF coaxial connector MHF (I-PEX), U.FL (Hirose) compatible
• Cable length: 50 mm
• Cable diameter: 1.13 mm
• Cable type: coax
• Frequency range: 2.400 ~ 2.500 GHz, 4.900 ~ 5.825 GHz
• Gain: > 3 dBi
• Operating temperature: -10 °C ~ 55 °C
• VSWR: 2.5:1 max.
• Dimensions (LxWxH): 42.00 x 7.70 x 1.60 mm

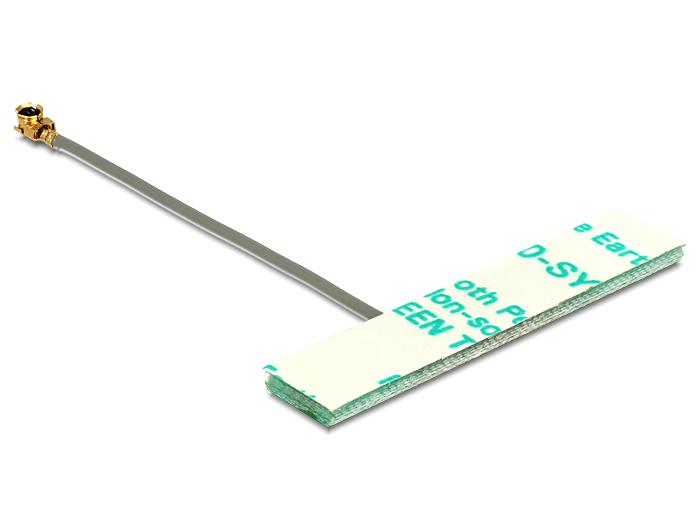

• Backside: self adhesive
System requirements:
Package content:
• Antenna
This antenna you can integrate into your devices with MHF / U.FL compatible connection to receive and send WLAN and Bluetooth signals.
Specification:
• Internal WLAN antenna PCB
• Connector: miniature RF coaxial connector MHF (I-PEX), U.FL (Hirose) compatible
• Cable length: 50 mm
• Cable diameter: 1.13 mm
• Cable type: coax
• Frequency range: 2.400 ~ 2.500 GHz, 4.900 ~ 5.825 GHz
• Gain: > 3 dBi
• Operating temperature: -10 °C ~ 55 °C
• VSWR: 2.5:1 max.
• Dimensions (LxWxH): 42.00 x 7.70 x 1.60 mm
• Backside: self adhesive
System requirements:
Package content:
• Antenna
