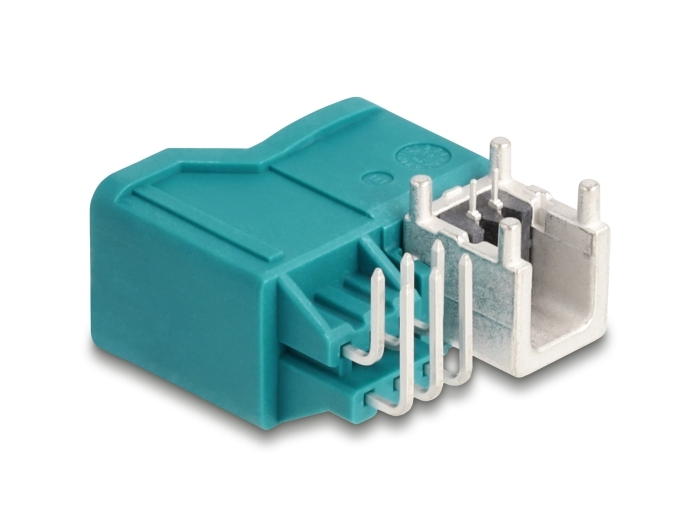

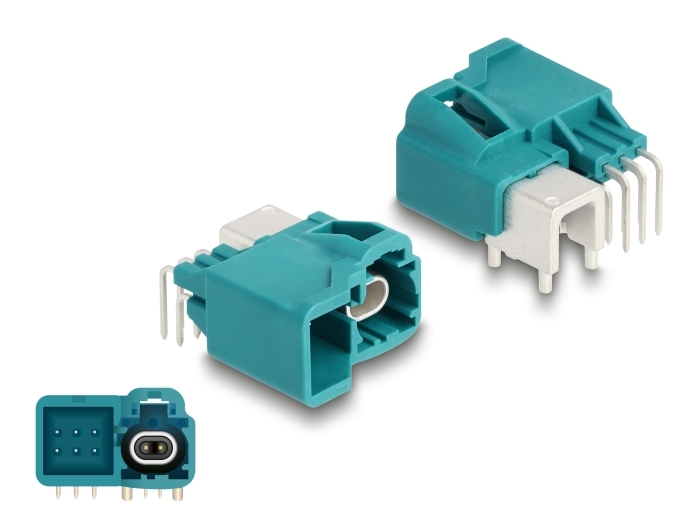

Delock HDMTD single + Powerpin plug angled for PCB

Reference 90328

Condition: New

More info

This adapter by Delock is suitable for connecting components of electronic technology and electronic in vehicles.

Power over HDMTD
With +6 power pins this HDMTD connector has an additional power supply. In addition to the data signal the power is transmitted on separate conductors (power pins) to supply the terminal device with power.

Note
• Compatible to H-MTD®

Specification:
• Connector: 1 x HDMTD plug 90° + Powerpin PCB
• HDMTD Z: RAL 5021 Water blue
• Pin: brass
• Insulator: LCP
• Plastic shell: PA46
• Soldering process: THT
• Frequency range: DC - 10 GHz
• Impedance: 100 Ohm
• Mating Cycles: ≥ 25
• Dimensions (LxWxH): ca. 26 x 21 x 13 mm

Package content:
• HDMTD plug

Data sheet:
http://www.delock.de/produkt/90328/pdf.html?sprache=en
