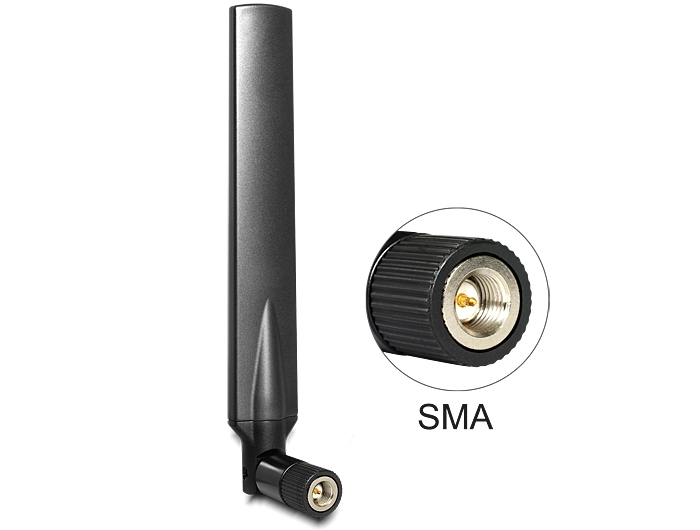

Delock LTE Antenna SMA plug 1 - 4 dBi omnidirectional with tilt joint black

Reference 88451

Condition: New

More info

This GSM / UMTS / LTE antenna can be connected to a GSM / UMTS / LTE device with SMA interface, in order to send and receive signals.

System requirements:
• Device with a free SMA jack

Specification:
• Connector: SMA plug
• Frequency range:
790 - 960 MHz
1710 - 2170 MHz
2570 - 2620 MHz
• Antenna gain:
1.0 - 3.5 dBi @ 790 - 960 MHz
2.0 - 4.0 dBi @ 1710 - 2170 MHz
3.0 - 4.0 dBi @ 2570 - 2620 MHz
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• VSWR: 4.0
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Colour: black
• Length:
ca. 163.10 mm (with tilt joint)
ca. 137.00 mm (without tilt joint)
• Diameter:
ca. 19.60 mm (top)
ca. 21.60 mm (max.)
ca. 13.50 mm (SMA)

Package content:
• LTE antenna

Data sheet:
http://www.delock.de/produkt/88451/pdf.html?sprache=en
