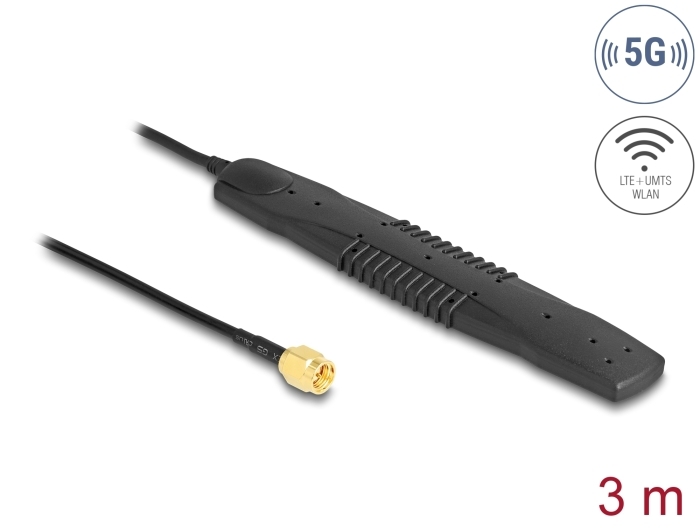

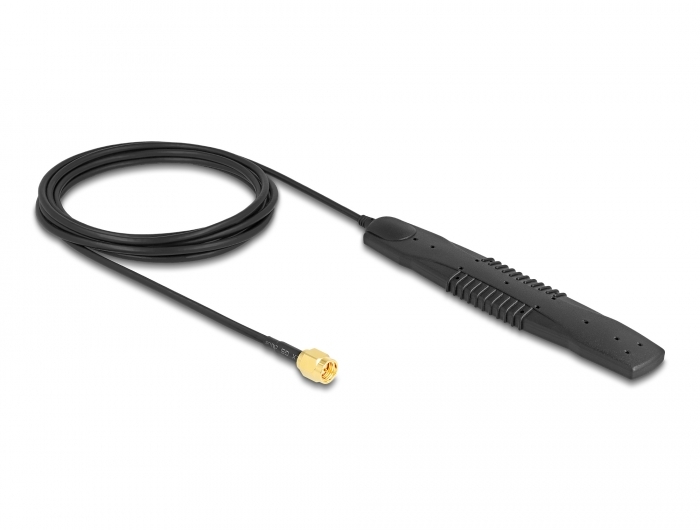

Delock 5G LTE, WLAN Antenna SMA plug 2,5 dBi omnidirectional fixed black self-adhesive

Reference 90101

Condition: New

More info

This 5G LTE and WLAN antenna can be installed indoors and can be used for reception of different bands. It is completely compatible to GSM, CDMA, GPRS, UMTS, LTE, 5G low band Sub-6 GHz, Bluetooth, WiFi, WLAN, Zigbee and ISM.

System requirements:
• Device with a free SMA jack

Specification:
• Connector: 1 x SMA plug
• Frequency range:
600 MHz - 960 MHz
1710 MHz - 6000 MHz
• Antenna gain: 2.5 dBi
• Impedance: 50 Ohm
• VSWR: 2.0:1
• Cable type: RG-174
• Cable attenuation: 0.9 dB @ 800 MHz per meter
• Cable colour: black
• Cable length: ca. 3 m
• Operating temperature: -20 °C ~ 80 °C
• Housing material: ABS UV resistant
• Dimensions (LxWxH): ca. 129.5 x 22.8 x 7.0 mm

Package content:
• Antenna

Data sheet:
http://www.delock.de/produkt/90101/pdf.html?sprache=en
