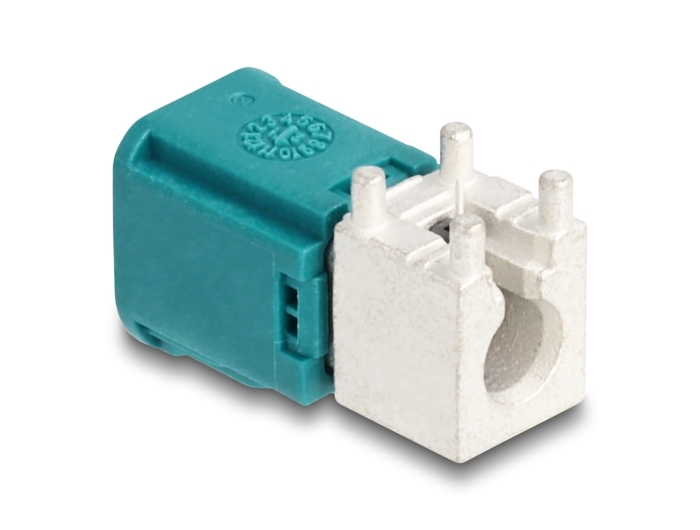

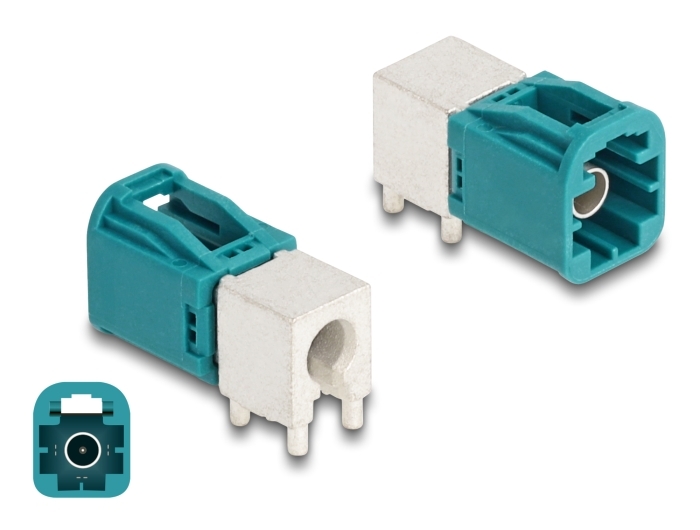

Delock Mini FAKRA plug single angled A-Type PCB

Reference 90112

Condition: New

More info

This adapter by Delock is suitable for connecting components of electronic technology and electronic in vehicles.

Space saving up to 80 %
Thanks to the small size of the housings at higher data rates, a space saving of 80 % can be achieved compared to the standard FAKRA connector. This allows several modules to be accommodated in a small space.

Note
A-Type: Compatible with Rosenberger

System requirements:
• Suitable board for mounting the Mini FAKRA connector

Specification:
• Connector: 1 x Mini FAKRA plug 90° PCB
• Mini FAKRA Z: RAL 5021 water blue
• Pin: brass
• Insulator: LCP
• Plastic shell: PA46
• Soldering process: THT
• Data transfer rate up to 28 Gbps
• Frequency range: up to 20 GHz
• Impedance: 50 Ohm
• Dimensions (LxWxH): ca. 21 x 8 x 10 mm

Package content:
• Mini FAKRA plug

Data sheet:
http://www.delock.de/produkt/90112/pdf.html?sprache=en
