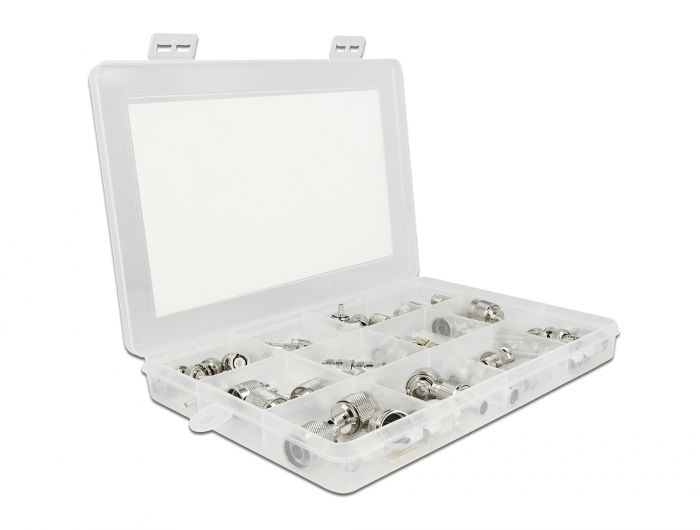

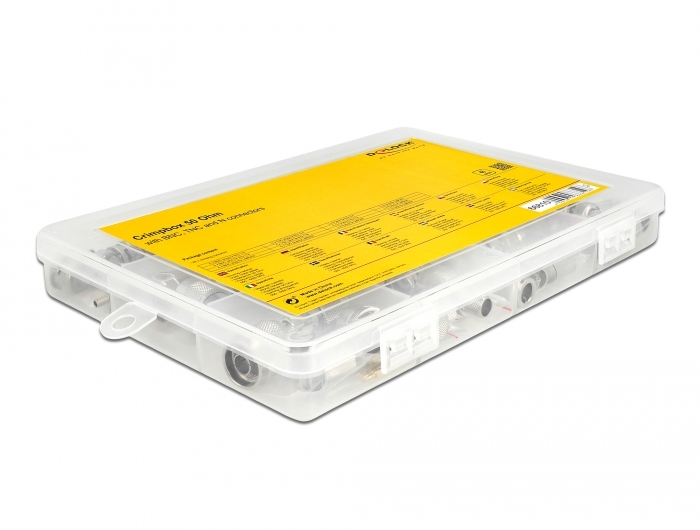

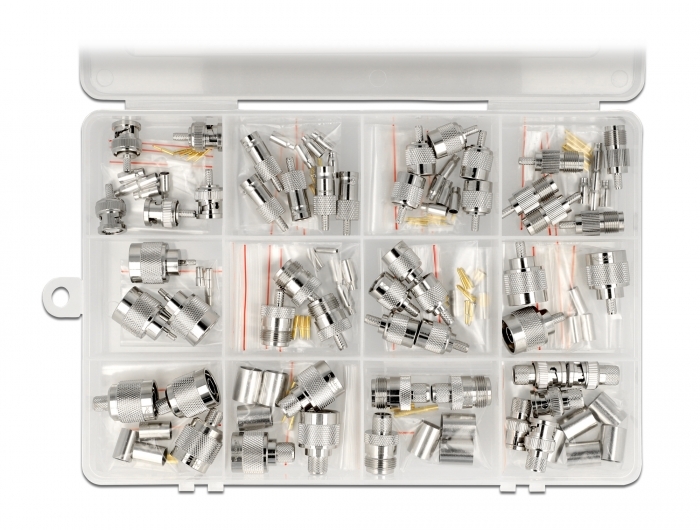

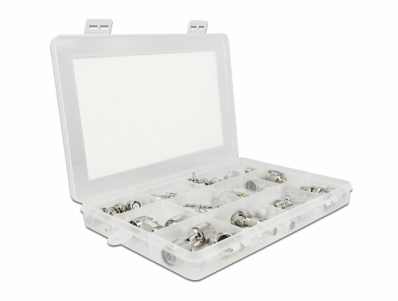

Delock Crimpbox 48 pieces 50 Ohm with BNC, TNC and N connectors

Reference 66810

Condition: New

More info

This high-quality box by Delock contains various high-frequency technology connectors for connecting components.

BNC connectors
BNC connectors are used especially in radio and video applications. The bayonet lock holds the connector firmly in place even under high tensile stress.

TNC connectors
Unlike BNC connectors, TNC connectors are not connected by a bayonet, but are screwed on by means of a thread. The application, however, is the same as for BNC in the radio and video sector.

N connectors
N connectors are among the most widely used connectors in high-frequency technology and are also used in radio and video applications.

System requirements:
• Coaxial cable suitable for crimping

Specification:
• Content:
  5 x BNC plug for RG-174
  5 x BNC jack for RG-174
  5 x BNC plug for LMR400
  5 x TNC plug for RG-174
  5 x TNC jack for RG-174
  5 x TNC plug for LMR200
  3 x N jack for RG-174
  3 x N plug for RG-174
  3 x N plug for LMR200
  3 x N plug for LMR300
  3 x N plug for LMR400
  3 x N jack for LMR400

• Housing material: brass nickel plated
• Impedance: 50 Ohm
• Frequency range: 500 - 6000 MHz
• Box dimensions (LxWxH): ca. 265 x 180 x 30 mm

Package content:
• 48 x crimping connector

Data sheet:
http://www.delock.de/produkt/66810/pdf.html?sprache=en
