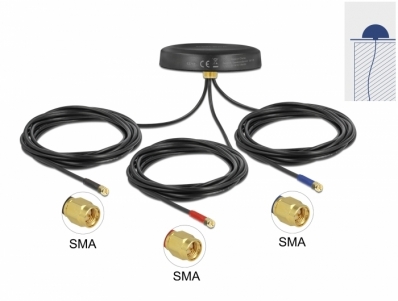

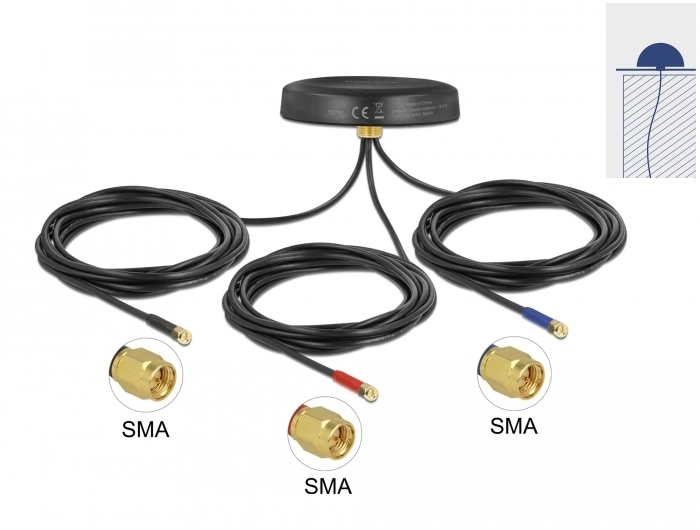

Delock Multiband LTE UMTS GSM GNSS Antenna 3 x SMA plug omnidirectional roof mount black outdoor

Reference 12717

Condition: New

More info

This multiband antenna by Delock has three physically separated transmitting and receiving units. Two PIFA antennas, respectively, for LTE and GSM / UMTS are responsible for sending and receiving in these areas. The GNSS patch antenna receives the signals of the Global Navigation Satellite Systems GNSS.
Due to its outdoor features, the multiband antenna is well suitable for usage in harsh areas such as transportation, forestry, agriculture, construction and in the maritime sector. It is waterproof, shock resistant and can be used in the extended temperature range.

System requirements:
• Device with multiple free SMA ports

Specification:
• Connectors: 3 x SMA plug
• LTE GSM UMTS:
  Frequency range:
  0.698 - 0.960 GHz
  1.710 - 2.700 GHz
GSM / UMTS / ZigBee / Z-Wave / LoRa / NB-IoT / WLAN 2,4 GHz / Bluetooth
  Antenna gain: 2 dBi
  Impedance: 50 Ohm
  VSWR: 2.5
  Polarisation: linear
  Cable type: coaxial
  Cable type: RG-174
  Cable diameter: ca. 2.7 mm
  Cable attenuation: 1.5 dB @ 1.5 GHz per meter

• GNSS:
  Frequency range:
  GNSS: L1, 1.57542 GHz, 1.598 - 1.610 GHz
  Antenna gain: 3 dBi
  Impedance: 50 Ohm
  VSWR: 2.5
  Polarisation: RHCP
  Cable type: coaxial
  Cable type: RG-174
  Cable diameter: ca. 2.7 mm
  Cable attenuation: 1.5 dB @ 1.5 GHz per meter

• LNA GNSS:
  Frequency range:
  GNSS: L1, 1.57542 GHz
Gain: 28 dBi
  VSWR: 2.0
  Impedance: 50 Ohm
Operating voltage: 2.2 - 5.0 V
  Current consumption: 5 - 15 mA
• Screw-on mounting
• Operating temperature: -40 °C ~ 85 °C
• Housing material: ABS
• Colour: black
• Protection class: IP67
• Cable colour: black
• Cable length incl. connectors: ca. 3 m
• Dimensions (Ø x H): ca. 81.0 x 15.5 mm
• Mounting hole diameter: 12 mm

Package content:
• Multiband antenna
• Nut

Data sheet:
http://www.delock.de/produkt/12717/pdf.html?sprache=en
