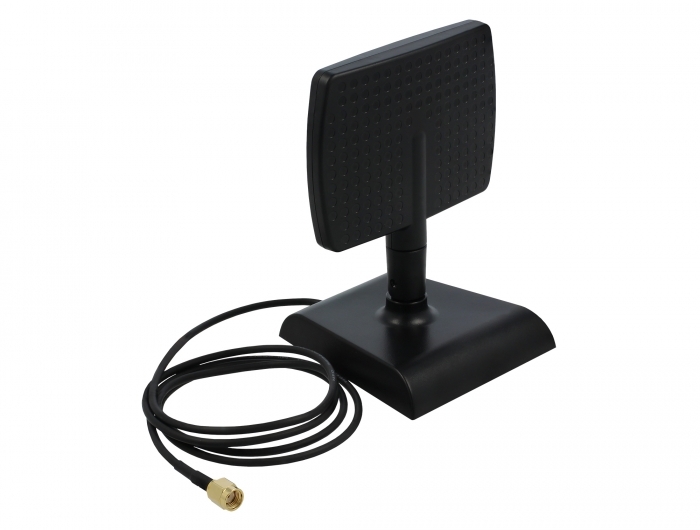

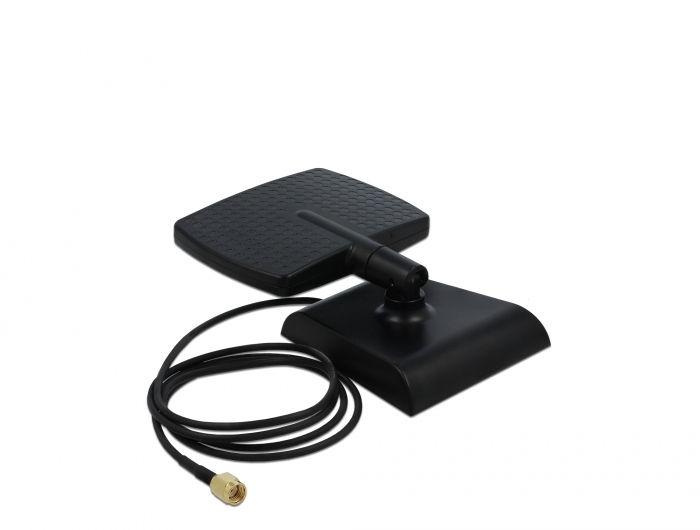

Delock WLAN WiFi 6 Antenna RP-SMA plug 4 - 6 dBi directional with magnetic base with tilt joint

Reference 90297

Condition: New

More info

This Wireless LAN antenna by Delock can be connected to a WLAN device with RP-SMA interface, in order to send and receive signals. With the help of the variable inclination of the antenna tilt and the magnetic base, the antenna can be positioned individually.

System requirements:
• Device with a free RP-SMA jack

Specification:
• Connector: 1 x RP-SMA plug
• With tilting joint, rotatable
• Frequency range:
  2.400 - 2.500 GHz
  5.150 - 5.875 GHz
• Antenna gain:
  4 dBi @ 2.5 GHz
  6 dBi @ 5.7 GHz
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: linear, vertical
• HBW horizontal beamwidth: 80°
• VBW vertical beamwidth: 70°
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS UV resistant
• Cable type: RG-174
• Cable colour: black
• Cable length: ca. 1 m
• Dimensions (LxWxH): ca. 115.5 x 90.0 x 80.0 mm

Package content:
• WLAN antenna

Data sheet:
http://www.delock.de/produkt/90297/pdf.html?sprache=en
