Delock Shark Fin Antenne mit LTE + WLAN + GNSS Multiband

Reference 89014

Condition: New

More info

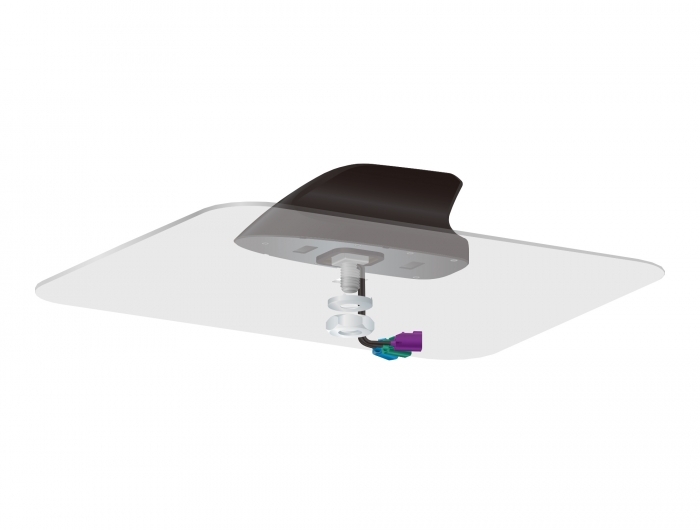

This multiband antenna by Delock is designed for mounting on a car roof.
The so-called shark fin antenna has three different frequency bands. The GPS patch antenna receives the signals of the Global Navigation Satellite Systems GALILEO and GPS. And it also works in all common LTE bands. The 2.4 GHz frequency band also covers the WLAN range.

Stylish and functional
The modern design of this shark fin antenna not only looks good, but is also particularly stable and aerodynamic.

System requirements:
• Device with free Fakra connectors

Specification:

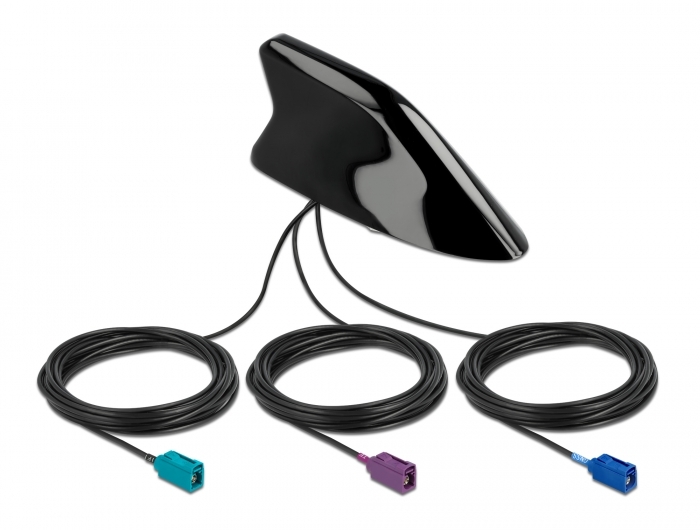

• Connectors:
1 x FAKRA D jack
1 x FAKRA Z jack
1 x FAKRA C jack
• LTE FAKRA D:
Frequency range:
698 - 960 MHz
1710 - 2690 MHz
Antenna gain: 3.5 dBi
VSWR: < 3.0
Impedance: 50 Ohm
Polarisation: linear
• WLAN FAKRA Z:
Frequency range:
2400 - 2483.5 MHz
Antenna gain: 3.0 dBi
VSWR: < 2.0
Impedance: 50 Ohm
Polarisation: linear
• GNSS FAKRA C:
Frequency range:
GPS: 1,5754200 GHz
GALILEO: 1,5754200 GHz
Antenna gain: 2 dBi
VSWR: < 1.5
Impedance: 50 Ohm
Polarisation: RHCP
• LNA GNSS:
Antenna gain: 28.0 dBi
Noise figure: < 2.0 dB
VSWR: < 2.0
Power supply: 3.0 - 5.0 V
Current consumption: < 15 mA
• Operating temperature: -40 °C ~ 85 °C
• Housing material: ABS
• Cable length: ca. 3 m
• Cable colour: black
• Cable type: RG-174
• Protection class: IP67
• Dimensions (LxWxH): ca. 182 x 69 x 70 mm

Package content:
• Shark fin antenna
• Nut

Data sheet:
http://www.delock.de/produkt/89014/pdf.html?sprache=en
