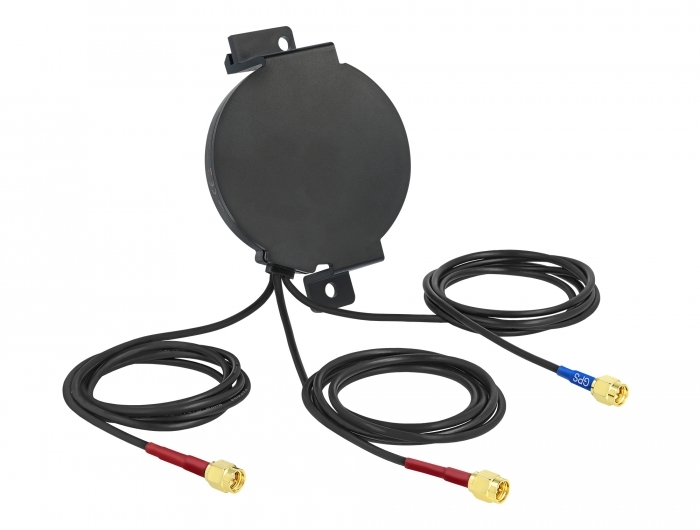

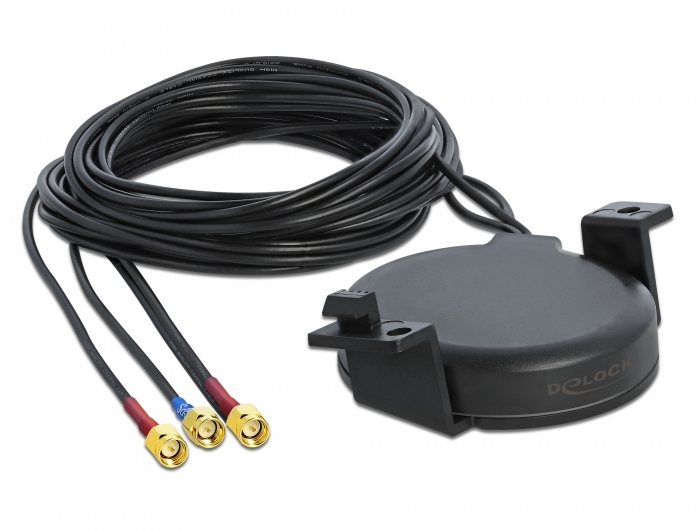

Delock LTE MIMO GNSS Antenna 3 x SMA plug RG-174 3 m screw mounting outdoor black

Reference 12700

Condition: New

More info

This antenna by Delock allows the usage of different LTE and GNSS bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, GNSS, Bluetooth, ISM, MIMO and LoRa 868 MHz / 915 MHz.

System requirements:
• Device with multiple free SMA ports

Specification:
• Connectors: 3 x SMA plug
• 2 x LTE:
  Frequency range: 698 MHz - 960 MHz 1710 MHz - 2690 MHz
  Impedance: 50 Ohm
  VSWR: 3.0
  Antenna gain: 2.0 - 2.5 dBi
  Polarisation: linear
• GNSS:
  Frequency range:
  GALILEO: E1, 1575.4200 MHz
  GPS: L1, 1575.4200 MHz
  Antenna gain: 2 dBi
  VSWR: 1.5
  Impedance: 50 Ohm
  Polarisation: RHCP
• LNA GNSS:
  Frequency range:
  GALILEO: E1, 1575.4200 MHz
  GPS: L1, 1575.4200 MHz
  Antenna gain: 28 dBi
  Operating voltage: 2.2 - 5.0 V
  Current consumption: 5 - 15 mA
  VSWR: 2.0
  Impedance: 50 Ohm
• Mounting type: screw mounting
• Operating temperature: -40 °C ~ 85 °C
• Housing material: ABS
• Protection class: IP67
• Colour: black
• Cable type: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable diameter: ca. 2.7 mm
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Smallest bending radius: 10.5 mm
• Cable length incl. connector: ca. 3 m
• Dimensions (Ø x H): ca. 81.3 x 16.3 mm

Package content:
• Antenna

Data sheet:
http://www.delock.de/produkt/12700/pdf.html?sprache=en
