> >>Delock LPWAN 806 - 896 MHz Yagi Antenna SMA plug 10 dBi fixed directional wall and pole mounting outdoor

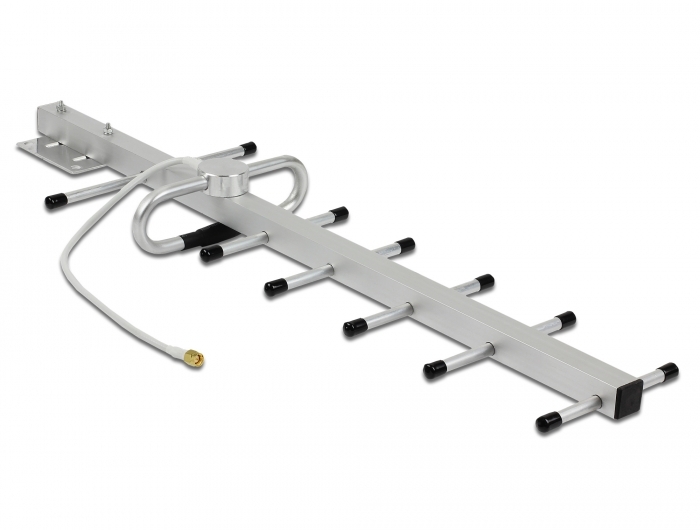

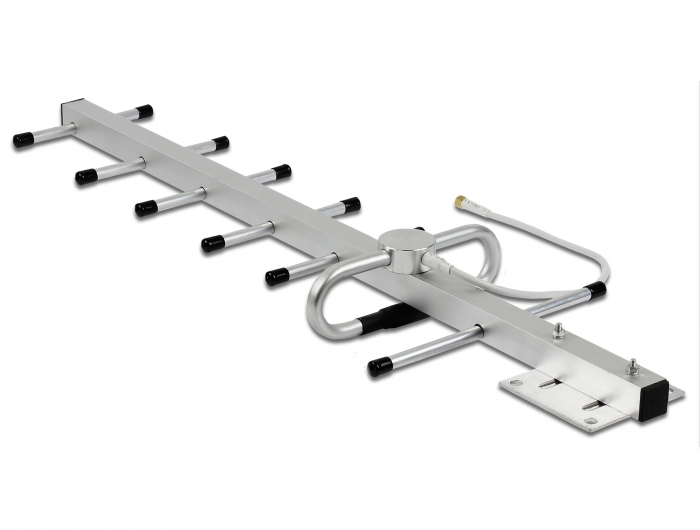

Delock LPWAN 806 - 896 MHz Yagi Antenna SMA plug 10 dBi fixed directional wall and pole mounting outdoor

Delock LPWAN 806 - 896 MHz Yagi Antenna SMA plug 10 dBi fixed directional wall and pole mounting outdoor

DELOCK

12569

New

This antenna by Delock allows the usage of the 806 - 896 MHz band indoors and outdoors.
System requirements:
• Device with a free SMA jack
Specification:
• Connector: 1 x SMA plug
• Frequency range: 806 - 896 MHz
• LoRa, Sigfox, ZigBee, Z-Wave
• Antenna gain: 10 dBi
• Impedance: 50 Ohm
• VSWR: 1.5
• Polarisation: vertical, horizontal
• HBW horizontal beamwidth: 60°
• VBW vertical beamwidth: 50°
• Operating temperature: -40 °C ~ 60 °C
• Housing material: aluminium alloy
• Colour: silver
• Dimensions (L): ca. 586 mm
• Weight: ca. 0.5 kg
• Maximum wind speed: 60 m/s
Package content:
• Antenna

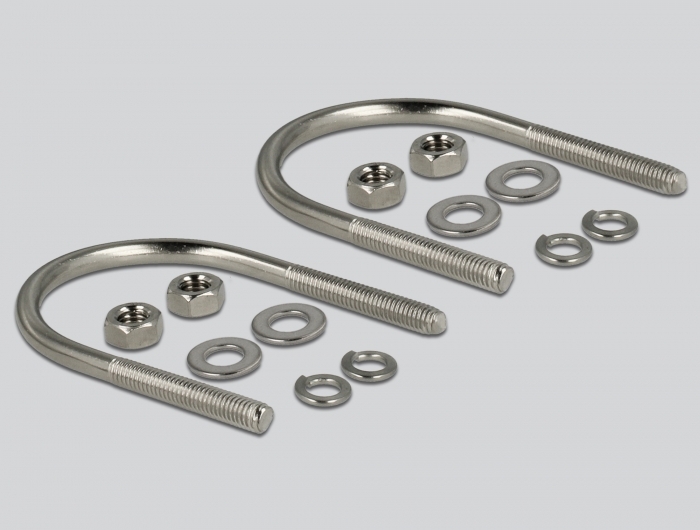

• Mounting material: nut, washer, snap ring, mounting bracket and pole mounting bracket
Data sheet:
http://www.delock.de/produkt/12569/pdf.html?sprache=en
