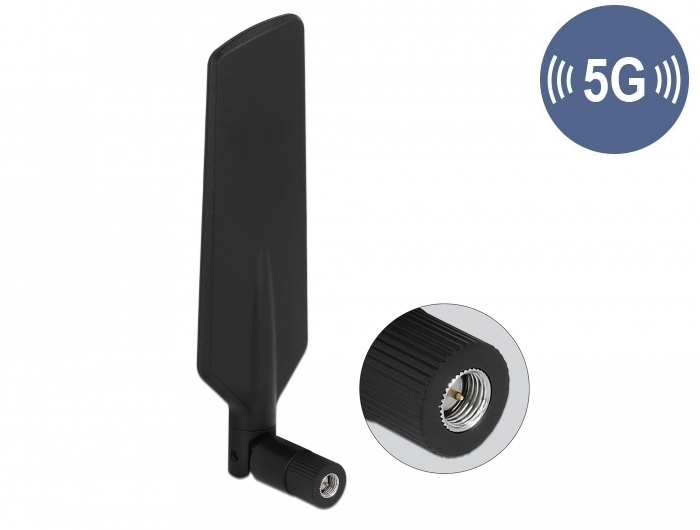

Delock 5G LTE Antenna SMA plug -1 - 3 dBi omnidirectional rotatable with tilt joint black

Reference 12606

Condition: New

More info

This LTE antenna by Delock allows the usage of different LTE bands inside and outside. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and LoRa.

System requirements:
• Device with a free SMA connector

Specification:
• Connector:
  1 x SMA plug
• GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM,
DECT, LoRa
• Frequency range:
  698 - 791 MHz
  824 - 960 MHz
  1420 - 1520 MHz
  1750 - 2170 MHz
  2450 - 2650 MHz
  3480 - 4200 MHz
  4400 - 4900 MHz
• Antenna gain: -1 - 3 dBi
• Impedance: 50 Ohm
• VSWR: 3.0 - 5.0
• Polarisation: linear, vertical
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Colour: black
• Dimensions (LxWxH): ca. 156.16 x 33.21 x 6.17 mm

Package content:
• Antenna

Data sheet:
http://www.delock.de/produkt/12606/pdf.html?sprache=en
