> >>Delock WLAN 802.11 ac/a/h/b/g/n Antenna SMA plug 1.4 - 3.0 dBi omnidirectional with connection cable ULA100 1 m white outdoor
Delock WLAN 802.11 ac/a/h/b/g/n Antenna SMA plug 1.4 - 3.0 dBi omnidirectional with connection cable ULA100 1 m white outdoor

Delock WLAN 802.11 ac/a/h/b/g/n Antenna SMA plug 1.4 - 3.0 dBi omnidirectional with connection cable ULA100 1 m white outdoor

DELOCK

89486

New

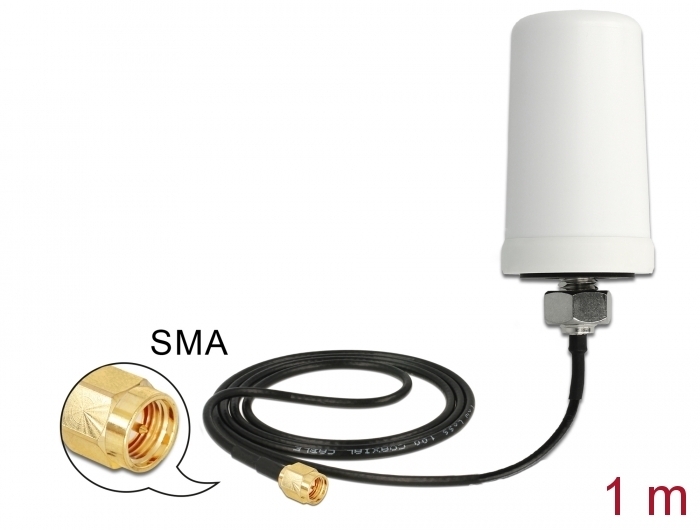

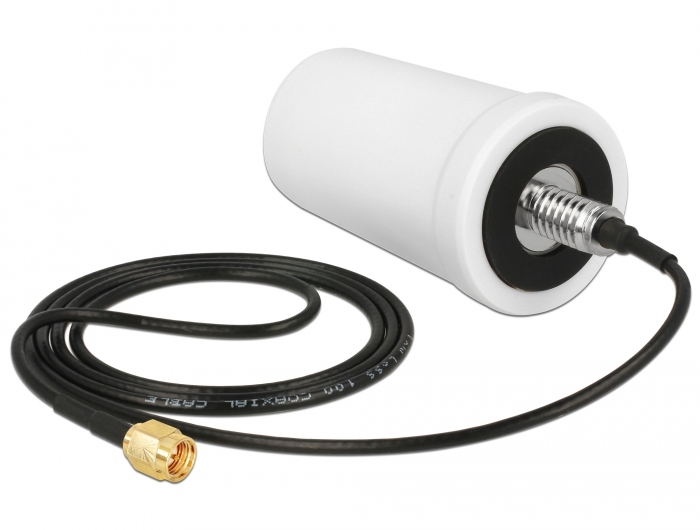

This WLAN antenna by Delock allows the usage of different WLAN bands inside and outside.
System requirements:
• Device with a free SMA jack
Specification:
• Connector: 1 x SMA plug
• Frequency range:
  2400 - 2500 MHz
  5150 - 5875 MHz
• Antenna gain:
    1.4 dBi @ 2400 - 2500 MHz
    3.0 dBi @ 5150 - 5875 MHz
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• VSWR: 2.0
• Operating temperature: - 40 °C ~ 85 °C
• Housing material: polycarbonate
• Protection class: IP67
• Colour: white
• Cable type: ULA 100
• Cable colour: black
• Cable attenuation:
  1.4 dB @ 2500 MHz per meter
  2.3 dB @ 5875 MHz per meter
• Cable diameter: ca. 2.79 mm
• Cable length incl. connector: ca. 1 m
• Dimensions (LxWxH): ca. 77 x 45 x 45 mm
Package content:
• WLAN antenna
Data sheet:
http://www.delock.de/produkt/89486/pdf.html?sprache=en
