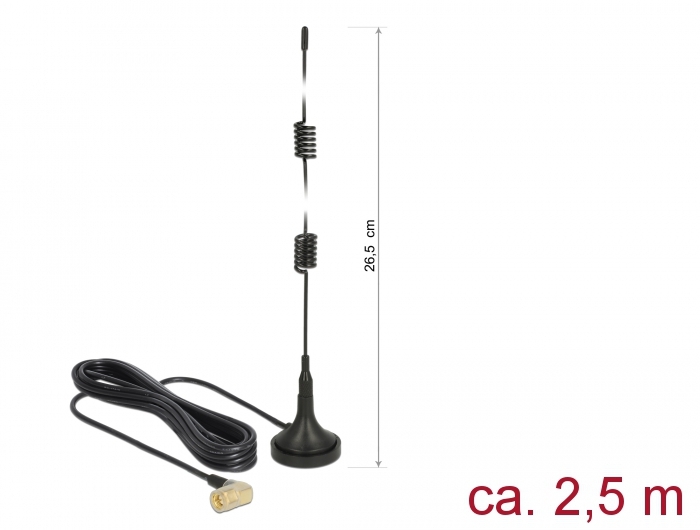

Delock LTE Antenna SMA plug 90° 2.5 dBi fixed omnidirectional with magnetic base and connection cable RG-174 2.5 m outdoor black

Reference 89614

Condition: New

More info

This LTE antenna by Delock allows the usage of different LTE bands inside and outside. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, NB-IoT, ISM and LoRa 868 MHz / 915 MHz.

System requirements:
• Device with a free SMA jack

Specification:
• Connector: 1 x SMA plug 90°
• GSM, UMTS, LTE, Bluetooth, ISM, LoRa, Z-Wave, WLAN, Zigbee, DECT, NB-IoT, ISM
• Frequency range:
690 - 960 MHz
1710 - 2700 MHz
• Antenna gain: 2.5 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: linear
• Operating temperature: -40 °C ~ 85 °C
• Colour: black
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Smallest bending radius: 10.5 mm
• Cable diameter: ca. 2.9 mm
• Cable length incl. connectors: ca. 2.5 m
• Antenna length including magnetic base: ca. 26.5 cm
• Diameter magnetic base: ca. 32.6 mm

Package content:
• Antenna

Data sheet:
http://www.delock.de/produkt/89614/pdf.html?sprache=en
