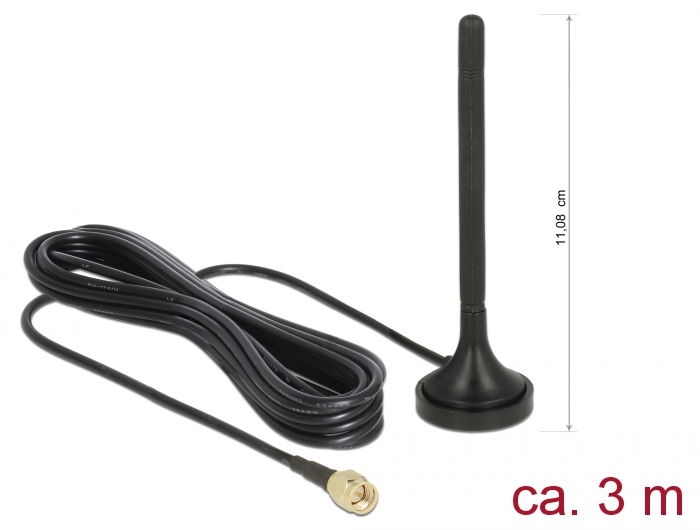

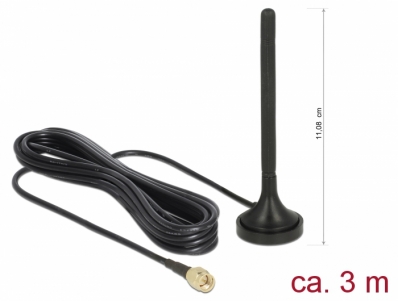

Delock LTE Antenna SMA plug 2 dBi fixed omnidirectional with magnetic base and connection cable RG-174 3 m outdoor black

Reference 89618

Condition: New

More info

This antenna by Delock allows the usage of different LTE, GSM and UMTS bands indoors and outdoors. It is completely compatible to LTE, GSM, UMTS, ZigBee, DECT, Z-Wave and NB-IoT.

System requirements:
• Device with a free SMA jack

Specification:
• Connector: 1 x SMA plug
• LTE, GSM, UMTS, ZigBee, DECT, NB-IoT, Z-Wave, LoRa
• Frequency range:
824 - 960 MHz
1710 - 2170 MHz
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: linear
• Operating temperature: -40 °C ~ 85 °C
• Colour: black
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable diameter: ca. 2.9 mm
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Smallest bending radius: 10.5 mm
• Antenna length including magnetic base: ca. 110.8 mm
• Cable length incl. connectors: ca. 3.0 m
• Diameter magnetic base: ca. 32.8 mm

Package content:
• Antenna

Data sheet:
http://www.delock.de/produkt/89618/pdf.html?sprache=en
