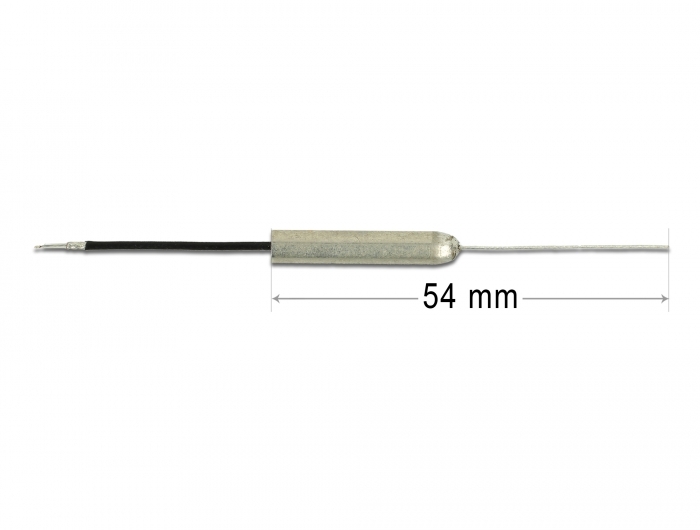

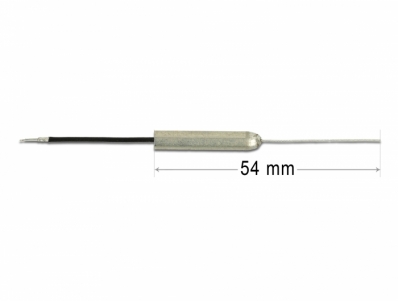

Delock WLAN 802.11 b/g/n Antenna open wire 1.13 86 mm

Reference 89625

Condition: New

More info

This antenna by Delock allows the usage of the 2.400 GHz band indoors. It is completely compatible to Bluetooth, WLAN 2.400 GHz, ZigBee 2.400 GHz and ISM 2.400 GHz.

Specification:
• Connector: 1 x open end tinned
• Bluetooth, WLAN 2.400 GHz, ZigBee 2.400 GHz, ISM 2.400 GHz
• Frequency range: 2.400 - 2.500 GHz
• Antenna gain: 0 - 3 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: vertical
• Operating temperature: -40 °C ~ 85 °C
• Cable: coaxial
• Cable type: RF1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 2.5 dB @ 2400 MHz per meter
• Length incl. connectors: ca. 86 mm

Package content:
• Antenna

Data sheet:
http://www.delock.de/produkt/89625/pdf.html?sprache=en
