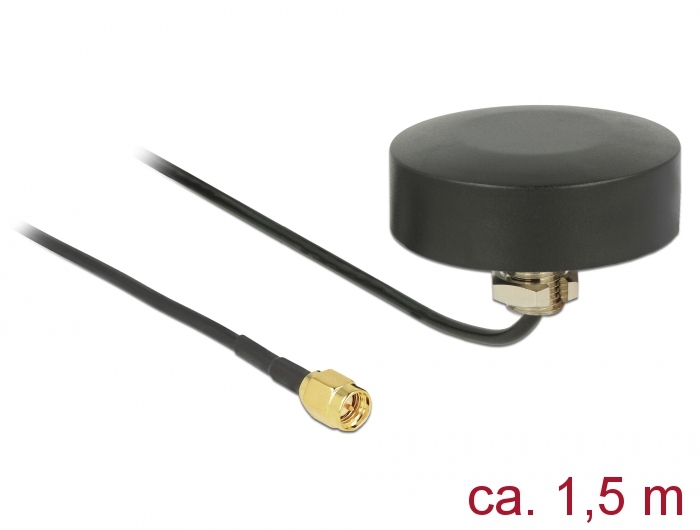

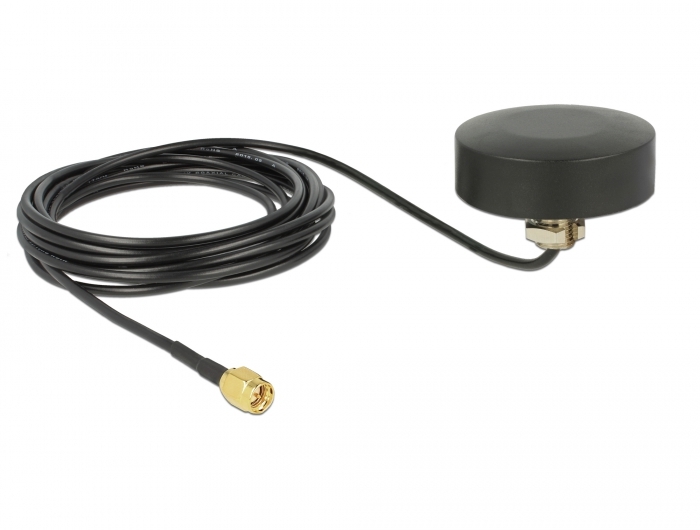

Delock WLAN 802.11 b/g/n Antenna SMA plug 3 dBi fixed omnidirectional with connection cable RG-174 1.5 m outdoor black

Reference 65890

Condition: New

More info

This antenna by Delock allows the usage of the 2.400 GHz band indoors and outdoors. It is completely compatible to Bluetooth, WLAN 2.400 GHz, ZigBee 2.400 GHz and ISM 2.400 GHz.

System requirements:
• Device with a free SMA jack

Specification:
• Connector: 1 x SMA plug
• Bluetooth, WLAN 2.400 GHz, ZigBee 2.400 GHz, ISM 2.400 GHz
• Frequency range: 2.400 - 2.483 GHz
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• VSWR: 2.0
• Operating temperature: -40 °C ~ 70 °C
• Screw-on mounting
  Screw type: M8
  Thread length: 14 mm
  Mounting hole diameter: 10 mm
• Colour: black
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable length incl. connectors: ca. 1.5 m
• Transmission power: 50 W
• Dimensions (Ø x H): ca. 47 x 14 mm

Package content:
• Antenna

Data sheet:
http://www.delock.de/produkt/65890/pdf.html?sprache=en
