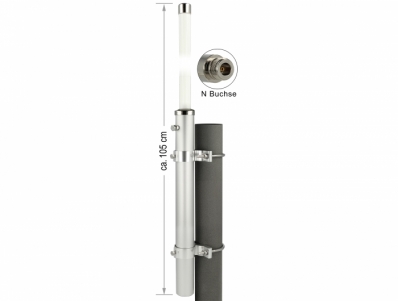

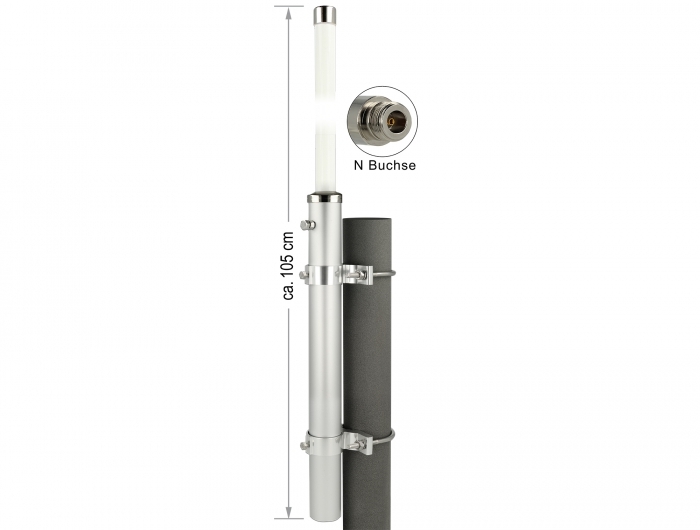

Delock GSM UMTS Antenna N Jack 7 dBi 75.6 cm omnidirectional fixed wall and pole mounting white outdoor

Delock GSM UMTS Antenna N Jack 7 dBi 75.6 cm omnidirectional fixed wall and pole mounting white outdoor

DELOCK

12500

New

Add to Compare
This antenna by Delock allows the usage of GSM UMTS bands indoors and outdoors.
System requirements:
• Device with a free N connector
Specification:
• Connector: N jack
• Antenna type: Collinear dipole array
• Frequency range:
  824 - 960 MHz
  1710 - 2170 MHz
• Antenna gain: 7 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• HBW horizontal beamwidth: 360°
• VBW vertical beamwidth: 6°
• VSWR: 2.0
• Power handling: max. 50 W
• Operating temperature: -40 °C ~ 60 °C
• Body: GFRP UV resistant
• Length: ca. 75,6 cm
• Diameter: ca. 2.6 cm
• Weight:
  antenna: ca. 400 g
  mounting material: ca. 70 g
Package content:
• Antenna

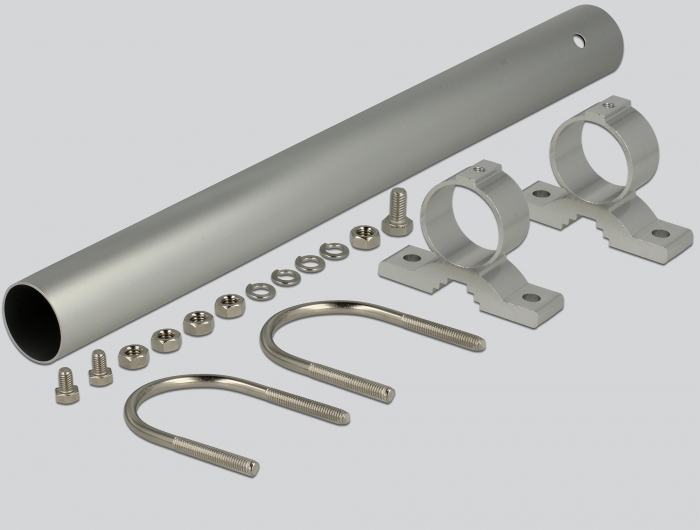

• Mounting material
Data sheet:
http://www.delock.de/produkt/12500/pdf.html?sprache=en
