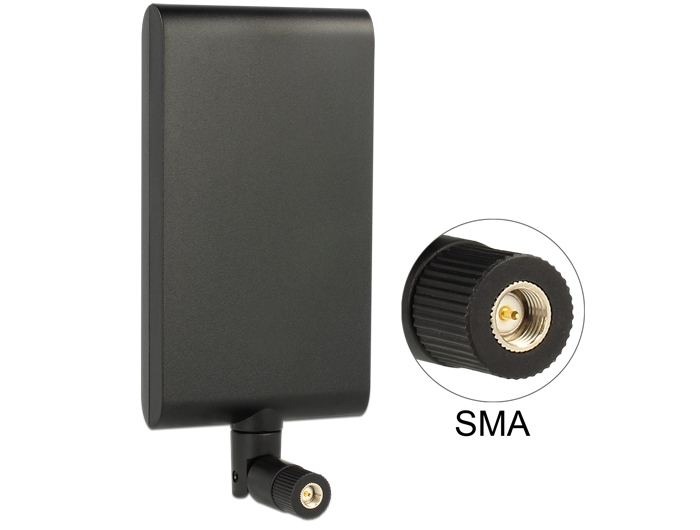

Delock LTE Antenna SMA 1 ~ 4 dBi omnidirectional rotatable with flexible joint black

DELOCK

88971

New

Add to Compare
This LTE antenna can be installed indoors and can be used  for reception of different LTE bands. It is completely UMTS, GSM, Bluetooth and WLAN 2.4 GHz compatible.
System requirements:
• Device with free SMA connector
Specification:
• Connector: SMA plug
• LTE Band: 1/2/3/4/5/6/7/8/9/10/12/13/14/15/16/17/18/19/20/23/25
• 698~787 MHz, 791~960 MHz, 1710~2170 MHz, 2500~2700 MHz
• GSM/UMTS
• Bluetooth
• WLAN 2.4 GHz
• ZigBee 868~870 MHz, 902~928 MHz, 2405~2480 MHz
• Gain: 1~4 dBi
• Impedance: 50 Ohm

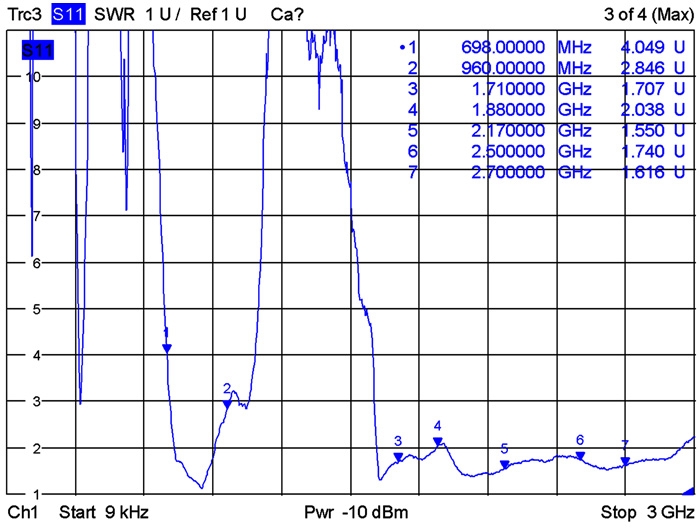

• VSWR: 3.0:1 max.
• Operating temperature: -10°C ~ 55°C
• Housing: ABS

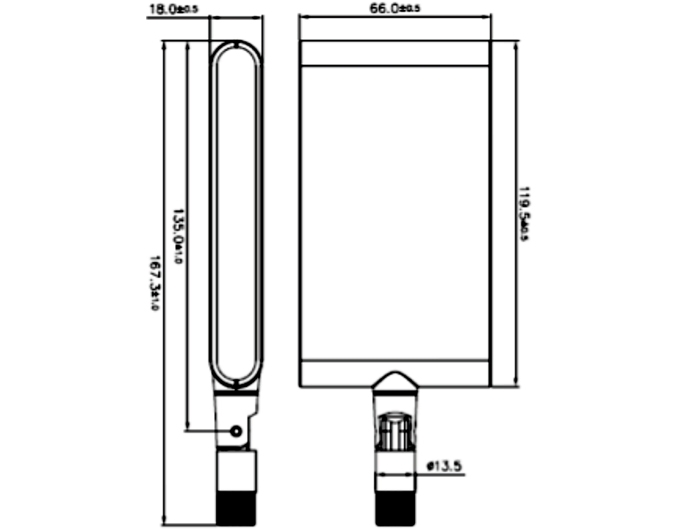

• Dimensions (LxWxH): ca. 167.3 x 66.0 x 18.0 mm
Package content:
• LTE antenna
Data sheet:
http://www.delock.de/produkt/88971/pdf.html?sprache=en
