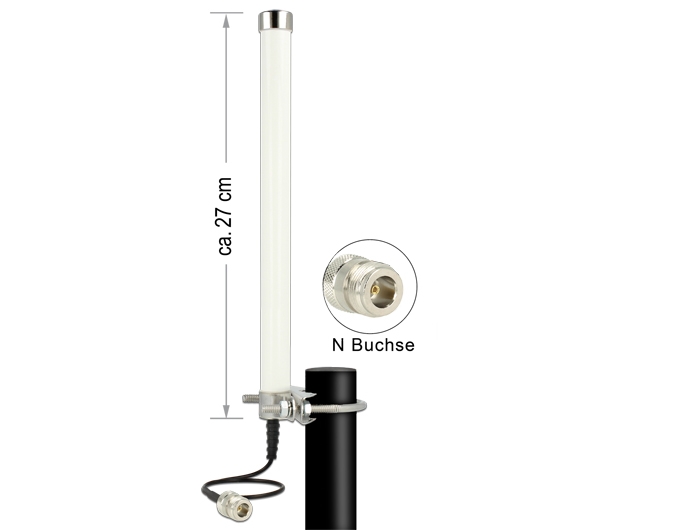

Delock LTE / GSM / UMTS Antenna N jack 2 - 6,5 dBi omnidirectional fixed pole mount white outdoor

Reference 12491

Condition: New

More info

This antenna by Delock allows the usage of different LTE, GSM and UMTS bands inside and outside. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.

System requirements:
• Device with free N plug

Specification:
• Connector: N jack
• Frequency range:
698 - 960 MHz
1710 - 2700 MHz
• ZigBee, Bluetooth, WLAN 2.4 GHz, DECT, Z-Wave, LoRa 868 MHz / 915 MHz
• Antenna gain: 2.0 - 6.5 dBi
• Impedance: 50 Ohm
• Transmitting power: max. 100 W
• VSWR: 2.0
• Operating temperature: -40 °C ~ 70 °C
• Cable category: coaxial
• Cable type: RG-174
• Cable length: ca. 30 cm
• Cable diameter: ca. 2.7 mm
• Cable colour: black
• Cable loss: ca. 1.5 dB @ 1.5 GHz per meter
• Body: GFK, UV protected
• Length: ca. 27.0 cm
• Diameter: ca. 2.2 cm
• Diameter N jack: ca. 1.66 cm

Package content:
• LTE Antenna

Data sheet:
http://www.delock.de/produkt/12491/pdf.html?sprache=en
