Delock LTE Antenna SMA plug 5 dBi fixed omnidirectional with magnetic base and connection cable (RG-174, 3 m) outdoor black

Reference 12427

Condition: New

More info

This LTE antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.

System requirements:
• Device with a free SMA jack

Specification:
• Connector: 1 x SMA plug
• Frequency range:
700 - 960 MHz
1710 - 2690 MHz
• GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868 MHz / 915 MHz
• Antenna gain: 5 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• VSWR: 2.0
• Transmission power: 50 W
• Operating temperature: -30 °C ~ 70 °C
• Colour: black

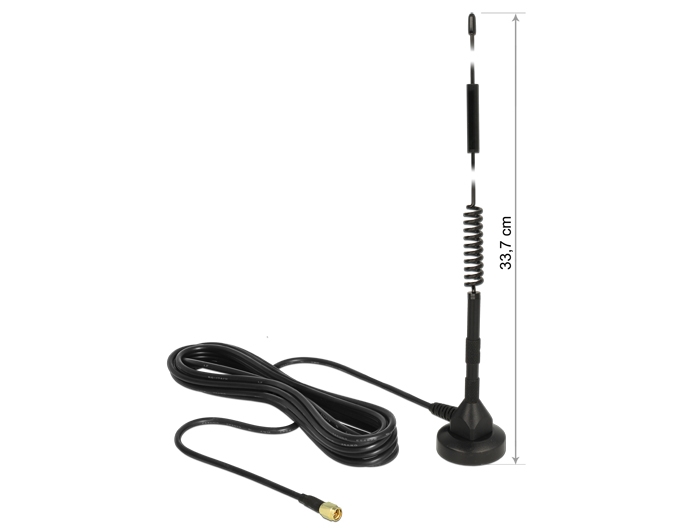

• Antenna length including magnetic base: ca. 337 mm
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 3 m
• Diameter magnetic base: ca. 40.0 mm

Package content:
• LTE antenna

Data sheet:
http://www.delock.de/produkt/12427/pdf.html?sprache=en
