Delock GSM Antenna SMA plug 7 dBi fixed omnidirectional with magnetic base and connection cable (RG-58, 3 m) outdoor black

Reference 12432

Condition: New

More info

This GSM antenna by Delock allows the usage of different GSM bands indoors and outdoors. It is compatible to ZigBee 868 MHz / 915 MHz, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.

System requirements:
• Device with a free SMA jack

Specification:
• Connector: 1 x SMA plug
• Frequency range:
824 - 960 MHz
1710 - 1990 MHz
• ZigBee 868 MHz / 915 MHz, DECT, Z-Wave, LoRa 868 MHz / 915 MHz
• Antenna gain: 7 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• VSWR: 2.0
• Transmission power: 50 W
• Operating temperature: -30 °C ~ 70 °C
• Colour: black

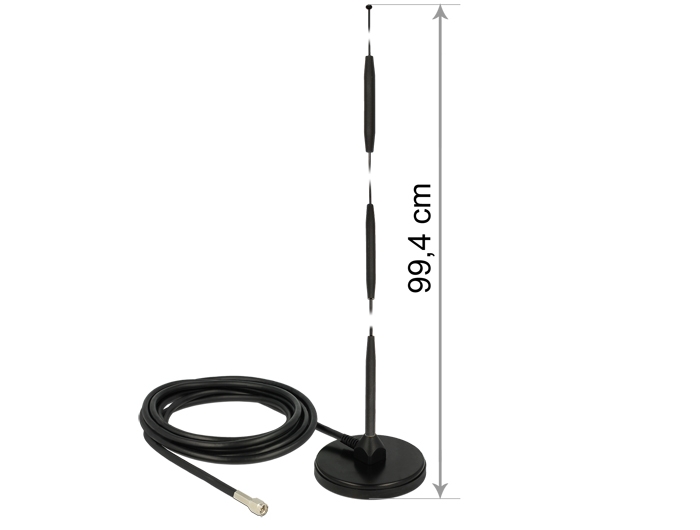

• Antenna length including magnetic base: ca. 994 mm
• Cable: coaxial
• Cable type: RG-58
• Cable colour: black
• Cable attenuation: 0.6 dB @ 1 GHz per meter
• Cable diameter: ca. 4.95 mm
• Cable length incl. connector: ca. 3 m
• Diameter magnetic base: ca. 86.0 mm

Package content:
• GSM antenna

Data sheet:
http://www.delock.de/produkt/12432/pdf.html?sprache=en
