Level One LevelOne Media Konverter 8-Bay 19" f. VDS-0200,01 POC-4001

Reference POC-4001

Condition: New

More info

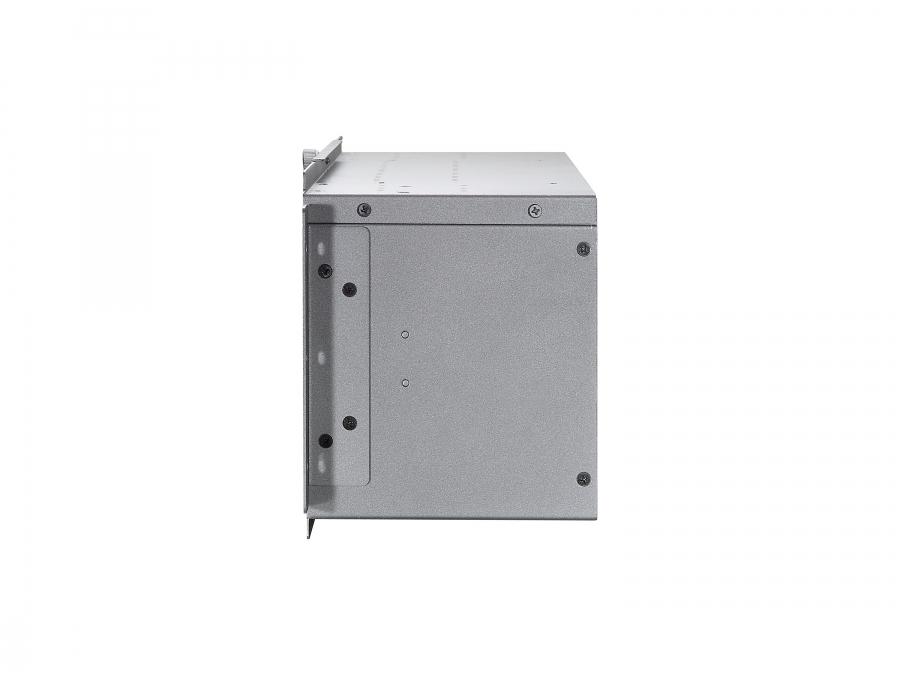

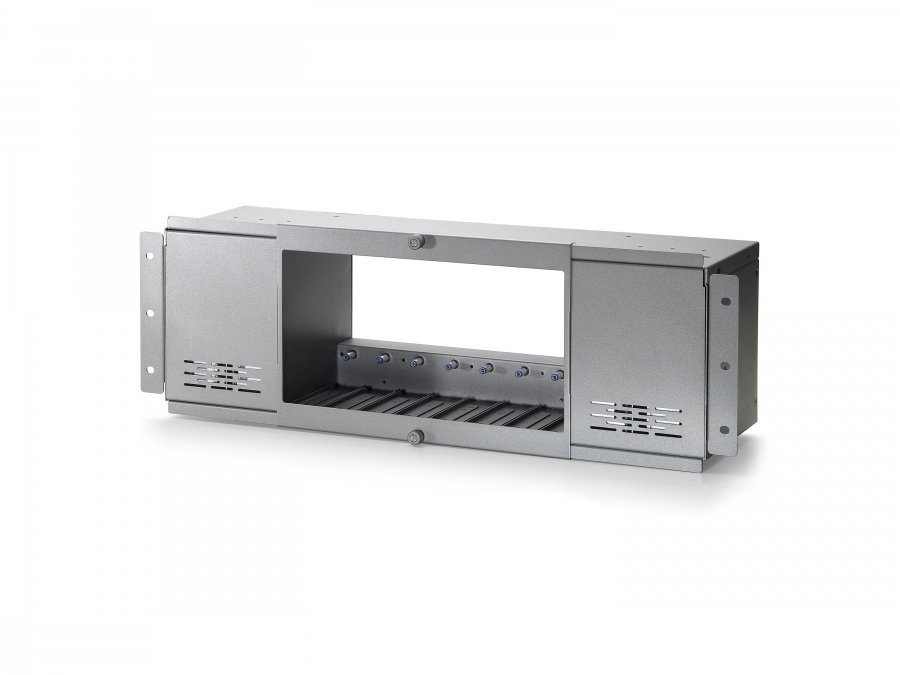

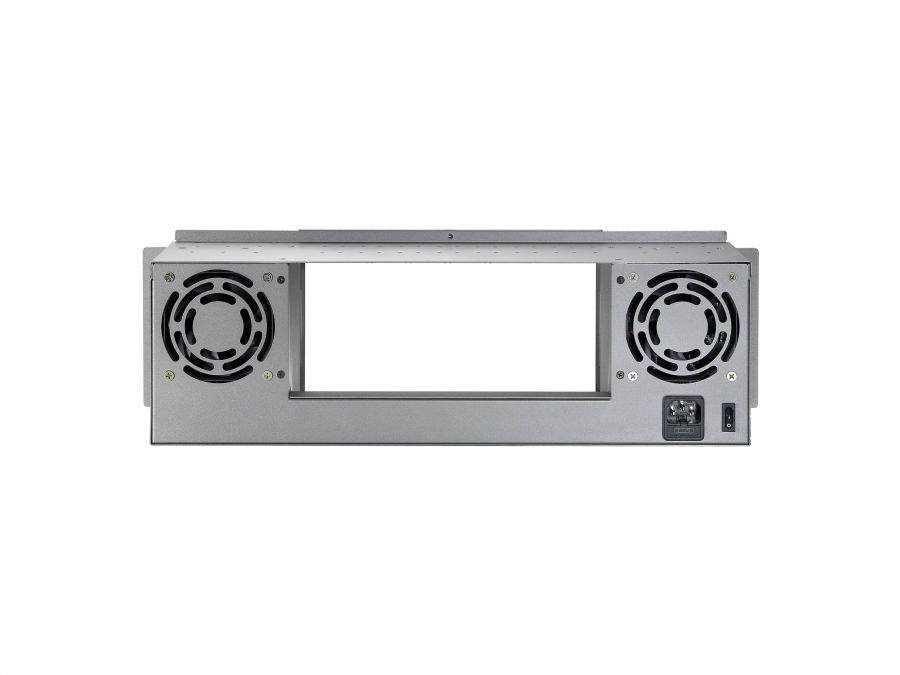

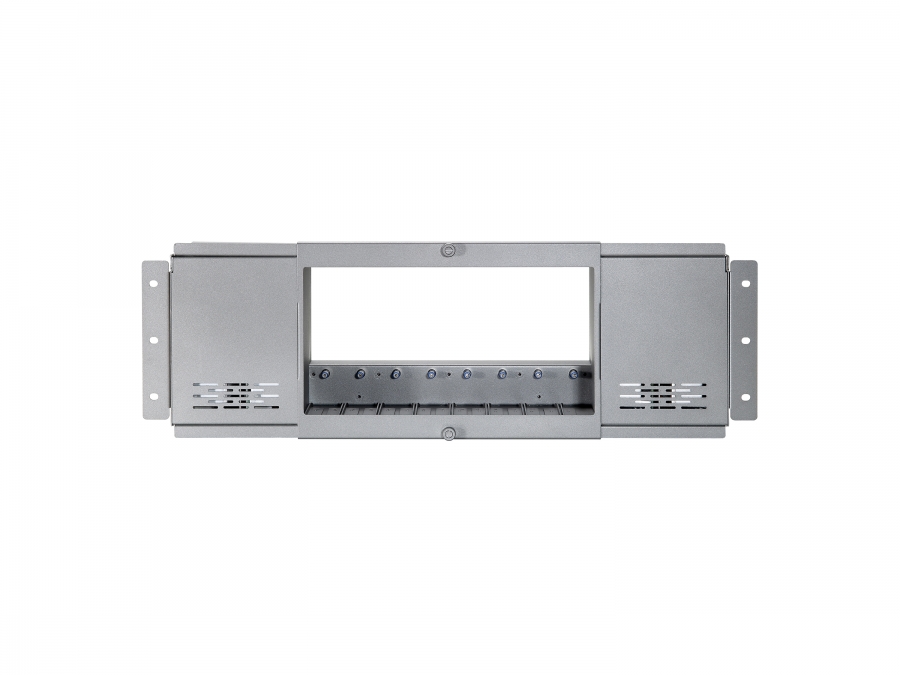

8-Bay Media Converter Chassis The POC-4001 can accommodate mixed VDS-0200/0201 & VDS-0202 and work with remote VDS-0200/0201 as central VDSL2 8-port Mux.VDS-0200/0201 are VDSL LAN Extenders providing roadband transmission up to 100/60Mbps for downstream / upstream over single pair copper line or coaxial cable (VDS-0202) for point-to-point Ethernet connectivity. With 100/60Mbps data rate, VDS-0200/0201 supports transmission distance up to 300 meters and 30/10 Mbps for 1km long range connection. Users may also select a fixed data rate or a fixed SNR margin for different copper line ranges.With plug and play features and quick installation time, a pair of VDS-0200/0201 offers a cost effective solution for bandwidth-hungry applications such as video streaming and FTTB over single twisted pair telephone line or coaxial cable. The POC-4001 allows the VDSL system to grow step by step. This means the system can be plugged in subject to instant demand and there is no need to pay for the additional hardware in advance. It is a flexible and economic method of investment.- Accommodates up to 8 VDS-0200/0201/0202 product - Standard compact 19" 4U Chassis mountable for space-saving convenient installation - Plug & play features for easy system expansions - Two DC electric fans for thermal ventilation - 250V 2A Fuse Protection

Rack capacity	4U
Size (imperial)	48.3 cm (19")
Product colour	Aluminium
Number of fans	2 fan(s)
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Width	483 mm
Depth	120 mm
Height	153 mm
Weight	3 kg
