Delock 4 in 1 Installation tool for F connectors

Reference 90515

Condition: New

More info

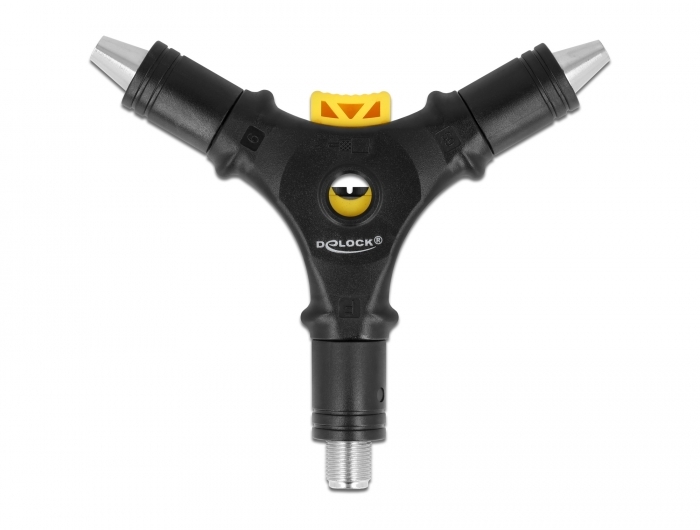

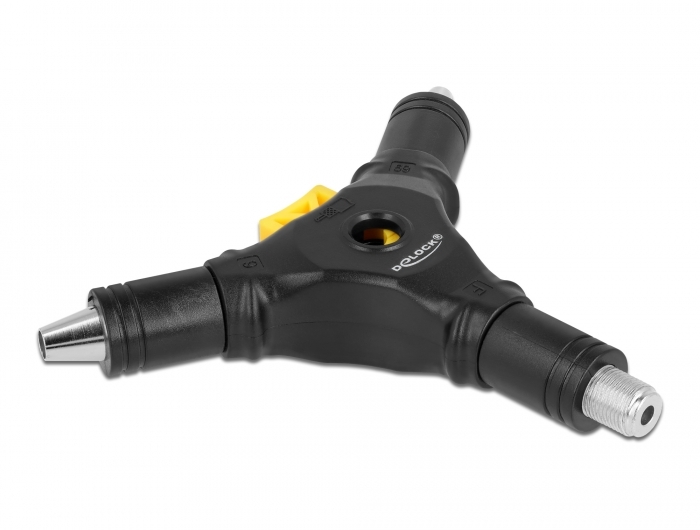

This star-shaped handy multi tool by Delock is designed to simplify the installation of F connectors.

4 in 1

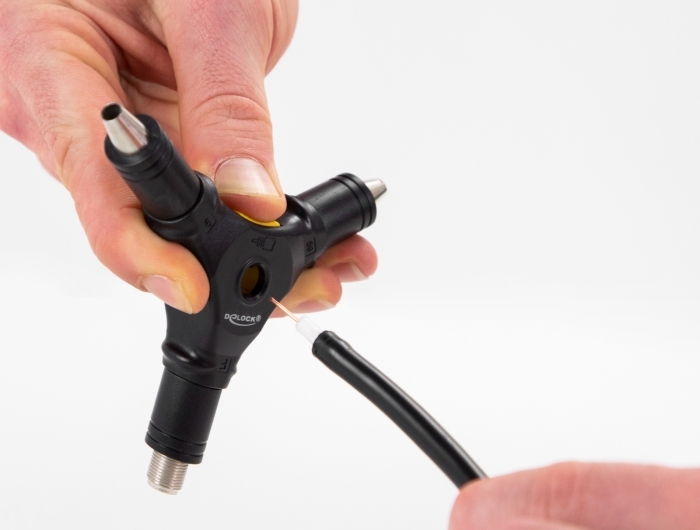

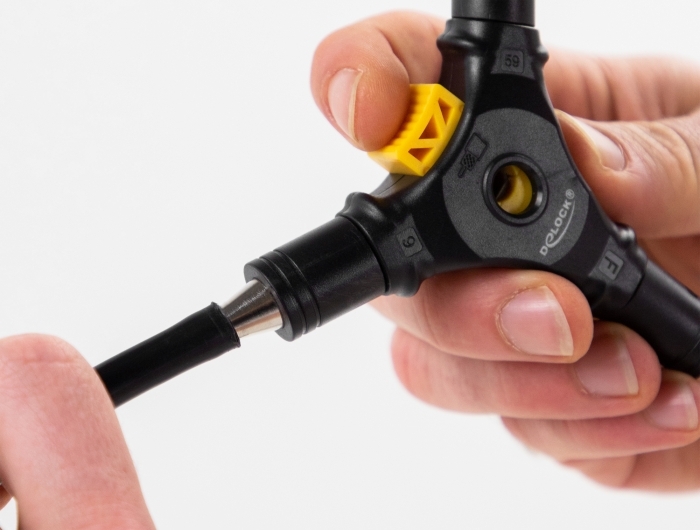

With the help of the blade in the middle of this tool, round cables can be stripped easily and quickly. After the stripping process, the ends of the RG-6 and RG-59 cables can be stretched by using the two different sized funnels to facilitate the insertion of the connector sleeve.
After the connector has been screwed onto the threaded plug, the cable can easily be inserted and in the next step crimped with a suitable crimping tool.

System requirements:
• Connectors suitable for crimping
• Suitable cables for stripping

Specification:
• Connectors suitable for installing: F plugs
• Suitable cables for stripping: RG-59, RG-6
• Funnel 1: for RG-59 cable
• Funnel 2: for RG-6 cable
• Thread: F plug
• Colour: black
• Weight: ca. 48 g
• Dimensions (LxWxH): ca. 10.5 x 10.5 x 2.0 cm

Package content:
• Installation tool

Data sheet:
http://www.delock.de/produkt/90515/pdf.html?sprache=en
