Delock ATX Power Supply Controller

DELOCK

25242

New

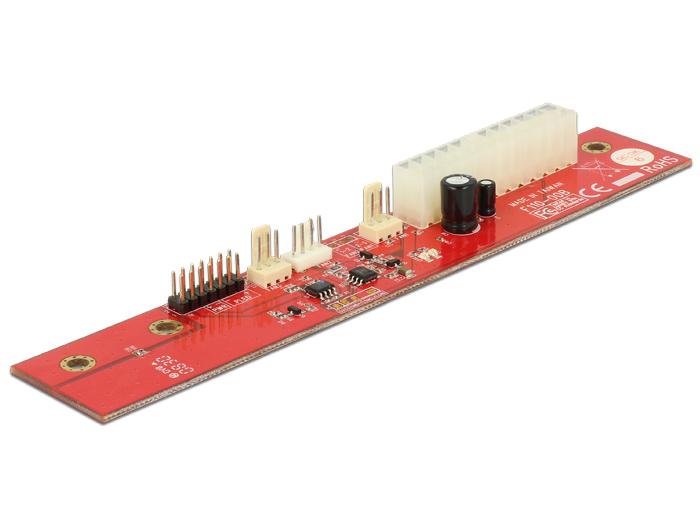

The Delock power supply controller can be used to control an ATX power supply. The board can be installed in a PC case instead of a motherboard. Connectors are available for power LED, power button, speaker and three fans. This allows to turn on the power supply without a motherboard and power the drives, the fans and other devices.

More details

Description:
The Delock power supply controller can be used to control an ATX power supply. The board can be installed in a PC case instead of a motherboard. Connectors are available for power LED, power button, speaker and three fans. This allows to turn on the power supply without a motherboard and power the drives, the fans and other devices.

Specification:
• Connector:
1 x
ATX power supply connector 24 pin
1 x pin header for power button (On / Off), speaker, power LED
2 x pin header for 3 pin fan
1 x pin header for 4 pin fan
Temperature controlled 3 pin / 4 pin PWM fan control
• 2 LEDs for status monitoring
• Dimensions (LxWxH): ca. 175.3 x 30 x 16 mm


System requirements:
• ATX power supply with 20 or 24 pin

Package content:
• ATX power supply controller
• User manual
