Delock Antenna Base SMA plug SMA Jack 1 m White Low Loss

Description:
This practical antenna base can be used universally in following applications:

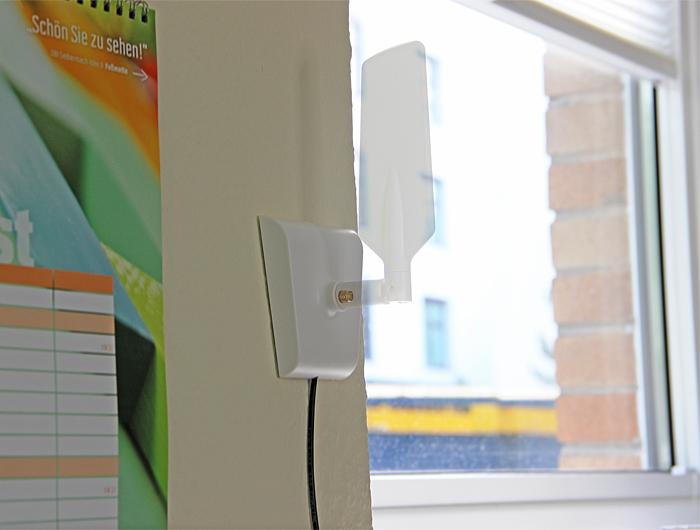

1. wall mounted
2. upright on the table

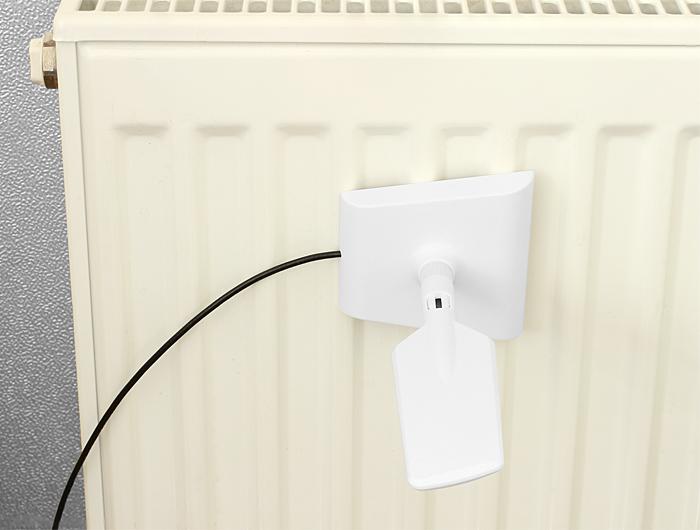

3. on metallic surfaces magnetically adhering.

Specification:
• Connector:
Base: SMA jack
Cable: SMA plug
• Cable length: 1 m
• Cable type: ULA100 low loss
• Cable attenuation: 2.400 ~ 2.500 GHz: 1.40 dB
4.900 ~ 5.875 GHz: 2.30 dB
• Operating temperature: -10°C ~ 55°C
• ABS UV resistant

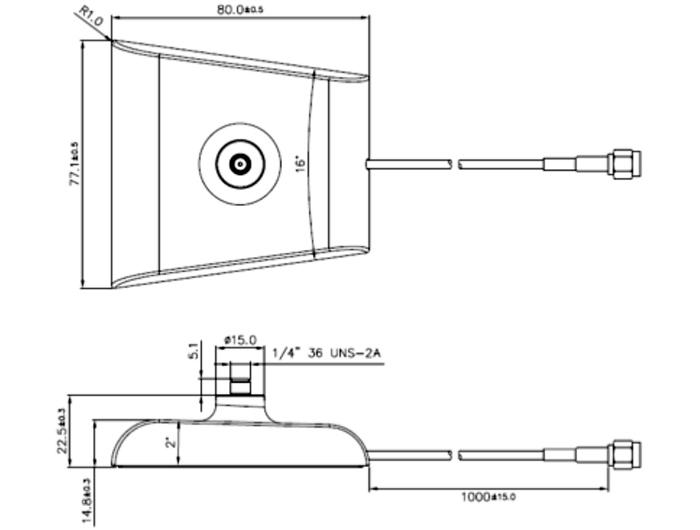

• Dimension (LxWxH): 80.0 x 77.1 x 22.5 mm
• Diameter SMA plug: 8 ~ 9 mm

System requirements:


Package content:
• Antenna base
