Navilock Connecting Cable MD6 Serial D-SUB 9 Serial for GNSS Receiver with PPS

Description:

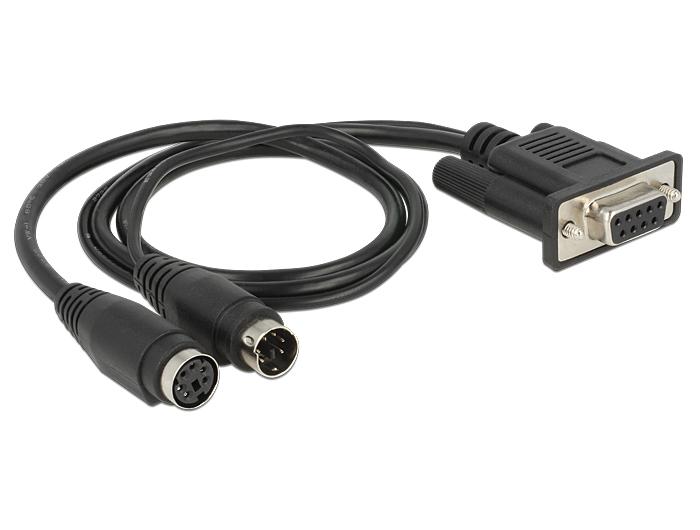

Navilock GNSS receiver possess an MD6 universal connector. The pin assignment of this connector is identical with chipsets by u-blox and SiRF. In order to connect the GNSS receiver to a serial port you need this specific connecting cable. It will be connected to the PS2 jack of your laptop, or tablet PC for power supply. The PS2 connector is only a power supply connection and does not transfer a data channel. The data protocol will be provided by the D-SUB 9 plug. On pin 6 you can analyze the PPS TTL signal from u-blox 8 receivers.

Specification:
• Connector: MD6 jack, D-SUB 9 jack, PS/2 plug
• Power supply via PS/2
• Length: 6 pin connecting cable ca. 59 cm (including connector)
• Length: PS/2 cable ca. 39 cm (including connector)

System requirements:
• Navilock serial MD6 GNSS receiver
• One free SUB-D9 jack

Package content:
• Connecting cable for GNSS receiver
