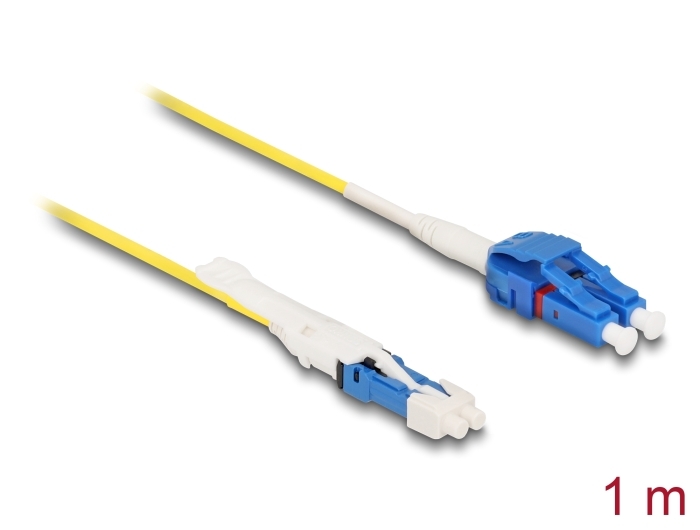

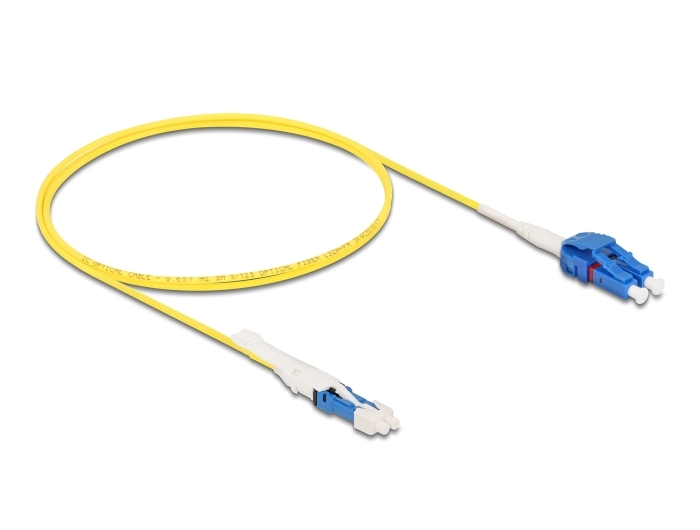

Delock Optical Fiber Cable CS male to LC Duplex singlemode G657A2 / OS2 Uniboot 1 m

Reference 88299

Condition: New

More info

This optical cable by Delock can be used to connect transceivers with CS interface and for cabling the optical fiber network in data centres.

CS connector
The CS (Connector Senko) plug belongs to the Very Small Form Factor (VSFF) connectors and has a smaller form factor than comparable LC Duplex connectors. The plug is particularly suitable for applications with high packing density. The push-pull tab on the connector makes it easy to plug and unplug.

Specification:
• Connectors:
1 x CS plug
1 x LC Duplex
• Singlemode G657A2 / OS2 cable
• Fibre: 9/125 µm
• Zirconia ceramic ferrule with protection cap
• Uniboot connector
• Polarity A/B can be changed without tools
• Push pull tab
• Cable diameter: ca. 2 mm
• Insertion loss < 0.2 dB
• Return loss > 55 dB
• Operating temperature: -20 °C ~ 70 °C
• LSZH (halogen-free)
• Colour: yellow
• Length incl. connectors: ca. 0.5 m

Package content:
• Optical fiber cable

Data sheet:
http://www.delock.de/produkt/88299/pdf.html?sprache=en
