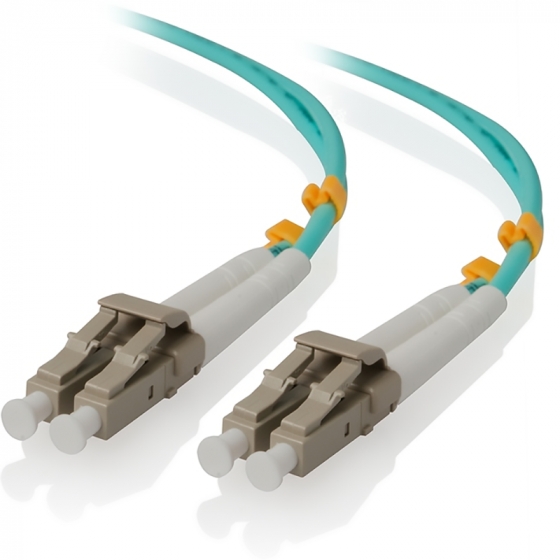

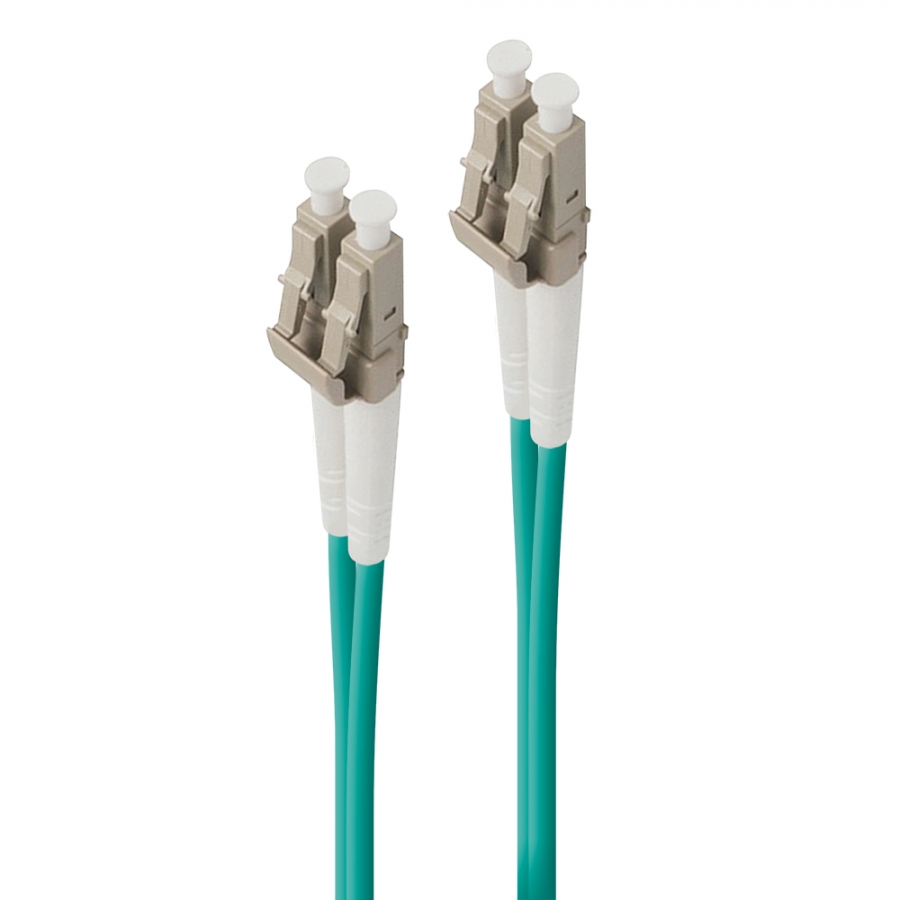

Alogic Glasfaserkabel LC-LC Multi Mode Duplex LSZH OM3 0.5m

ALOGIC

LCLC-0.5-OM3

New

The Multi Mode OM3 cables are designed to support high transfer speed, the cables are capable of supporting up to 10gigabit applications at the same time being backward compatible with 50/125 OM2 infrastructure. The cables meet or exceed industry standard specifications; each cable is individually tested for maximum reliability and comes with performance reports.The ALOGIC OM3 Patch Cables are available in various lengths starting from 0.5m to 100m length

Cable length0.5 m
Fibre optic typeOM3
Connector 1LC
Connector 2LC
Connector 1 genderMale
Connector 2 genderMale
Product colourTurquoise
Jacket materialLow smoke zero halogen (LSZH)
Full duplex
Core diameter50 µm
Cladding diameter125 µm
Fiber mode structureMulti-mode
Wavelengths supported850,1300 nm
Ethernet interface type10 Gigabit Ethernet
Data transfer rate10 Gbit/s
Insertion loss0.2 dB
CertificationETL/c-ETL
Cable diameter2 mm
Quantity per pack1 pc(s)
Harmonized System (HS) code85447000
Number of optical fibres2

9/125 62.5/125 50/124 MTP
