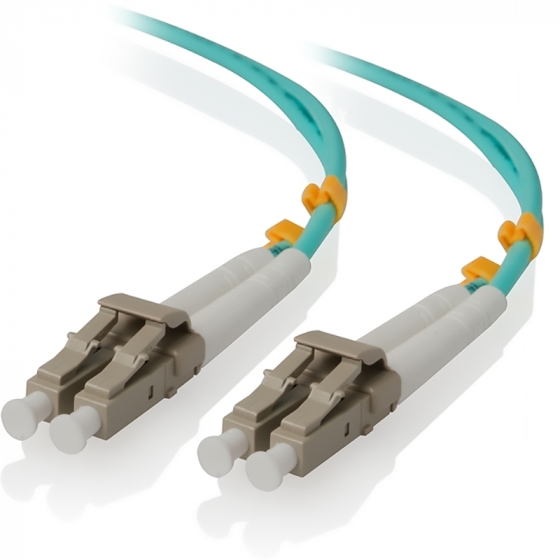

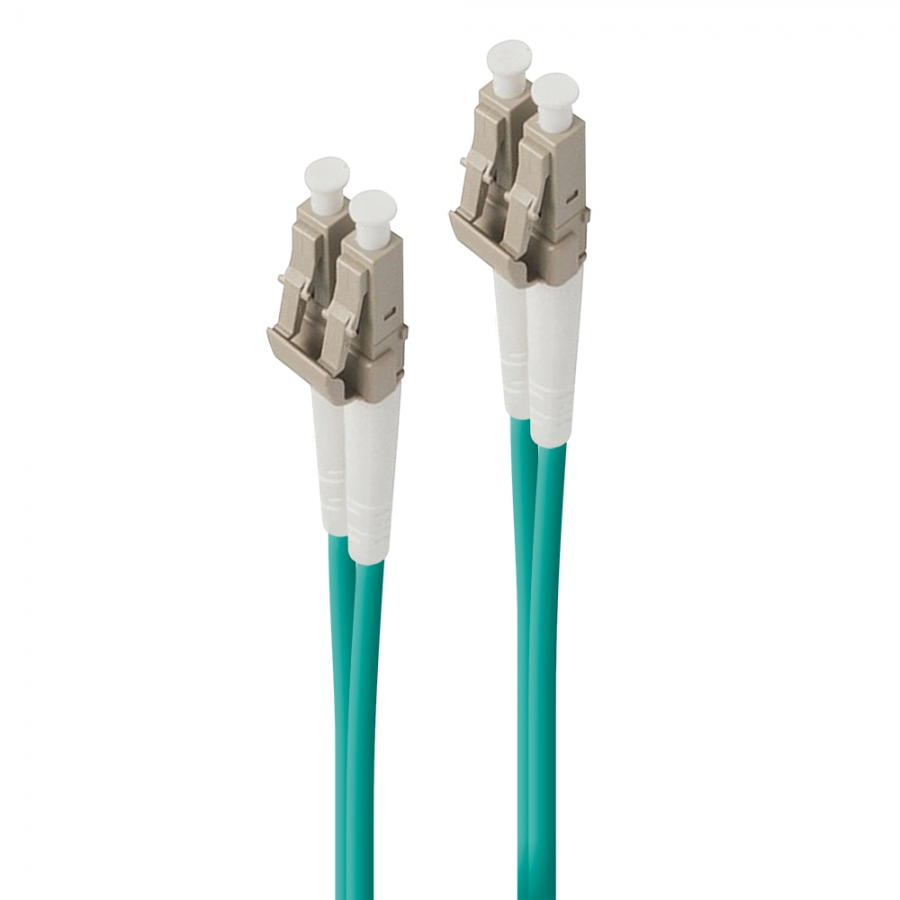

Alogic Glasfaserkabel LC-LC Multi Mode Duplex LSZH OM4 1.5m

ALOGIC

LCLC-1.5-OM4

New

The Multi Mode OM4 cables are designed to support very high transfer speed, the cables are capable of supporting up to 100gigabit applications at the same time being backward compatible with OM3 and OM2 infrastructure. The cables meet or exceed industry standard specifications; each cable is individually tested for maximum reliability and comes with performance reports. The ALOGIC OM4 Patch Cables are available in various lengths starting from 0.5m to 20m length.

Cable length1.5 m
Fibre optic typeOM4
Connector 1LC
Connector 2LC
Connector 1 genderMale
Connector 2 genderMale
Product colourTurquoise
Jacket materialLow smoke zero halogen (LSZH)
Full duplex
Core diameter50 µm
Cladding diameter125 µm
Fiber mode structureMulti-mode
Wavelengths supported850,1300 nm
Ethernet interface type40 Gigabit Ethernet, 100 Gigabit Ethernet
Data transfer rate100 Gbit/s
Insertion loss0.5 dB
CertificationETL/c-ETL
Cable diameter3 mm
Quantity per pack1 pc(s)
Harmonized System (HS) code85447000
Number of optical fibres2

9/125 62.5/125 50/124 MTP
