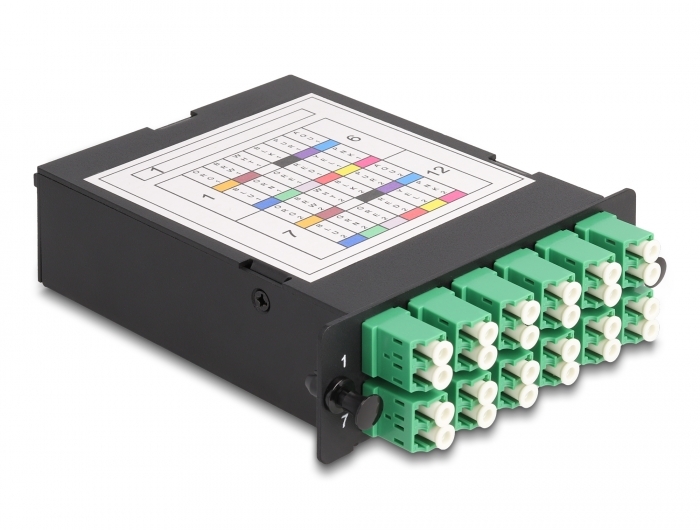

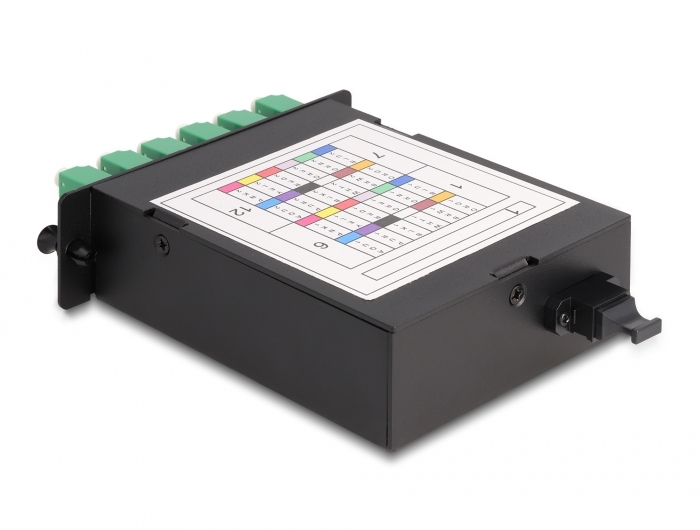

Delock Fiber Optic HD (High Density) Cassette MPO male to 12 x LC Duplex female, 24 fibers, Single-mode, Polarity A, 9/125 µm

Reference 66937

Condition: New

More info

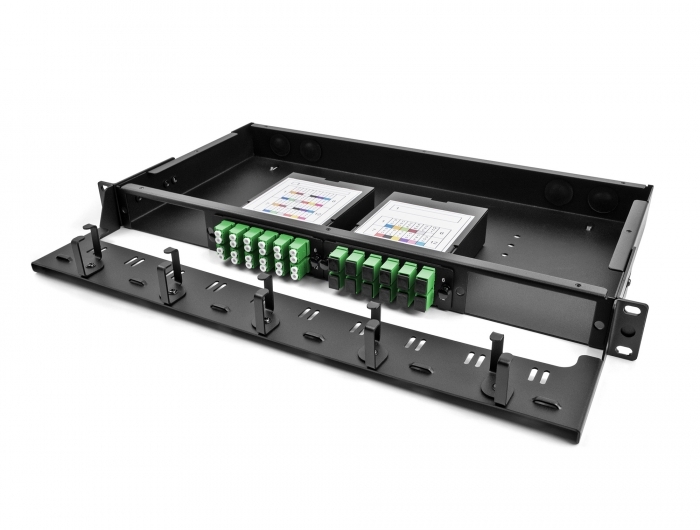

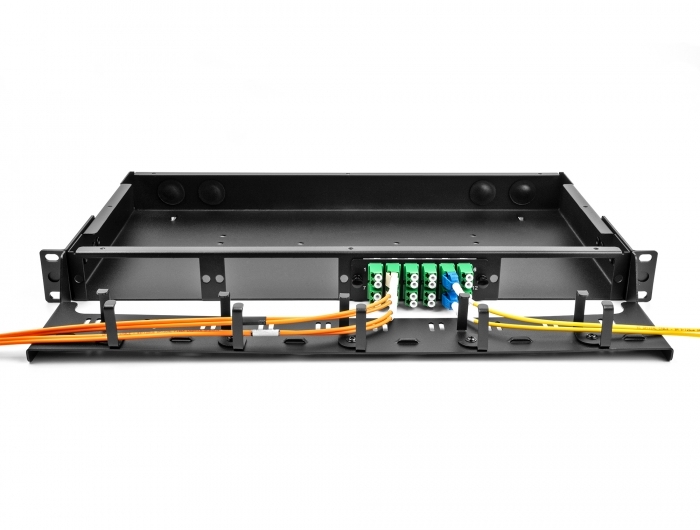

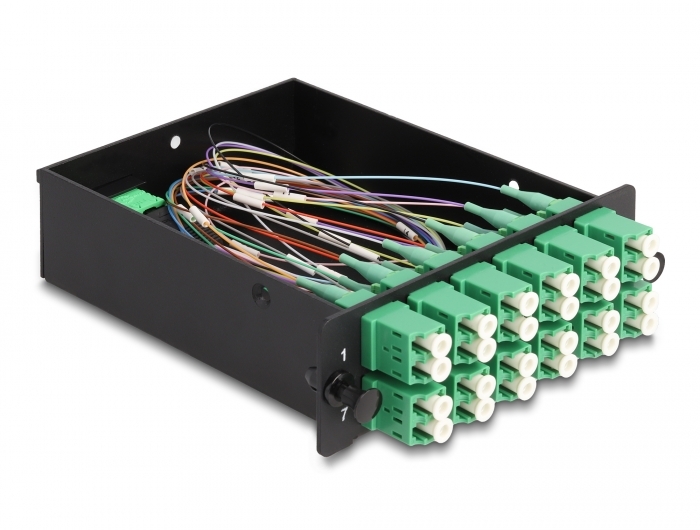

This cassette by Delock is equipped with an MPO male port and twelve LC Duplex female ports and is suitable for installation in 19″ fiber optic HD (High Density) patch panel by Delock (66924). The cassette contains a pre-assembled cabling system, so that the optical fiber signal can be transmitted to different network devices such as switches.

System requirements:
• 19″ fiber optic HD (High Density) patch panel

Specification:
• Connectors:
1 x MPO female >
12 x LC Duplex female
• For 24 Single-mode fibers
• Zirconia ceramic ferrule with protection cap
• For mounting in 19″ fiber optic HD (High Density) patch panel, 1U
• Tool-free installation
• Fibre: 9/125 µm
• Polarity A
• Insertion loss < 0.7 dB (MPO), < 0.2 dB (LC)
• Return loss > 60 dB (MPO), > 60 dB (LC)
• Housing material: metal
• Housing colour: black
• Dimensions (LxWxH): ca. 125 x 102 x 29 mm

Package content:
• Fiber optic HD (High Density) cassette

Data sheet:
http://www.delock.de/produkt/66937/pdf.html?sprache=en
