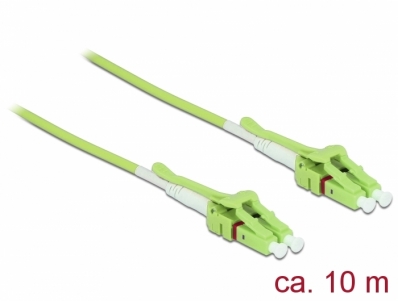

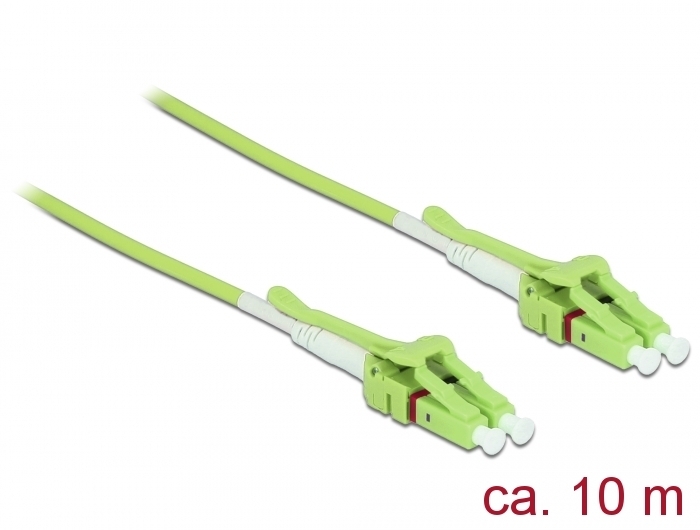

Delock Cable Optical Fibre LC > LC Multi-mode OM5 Uniboot 10 m

Reference 85692

Condition: New

More info

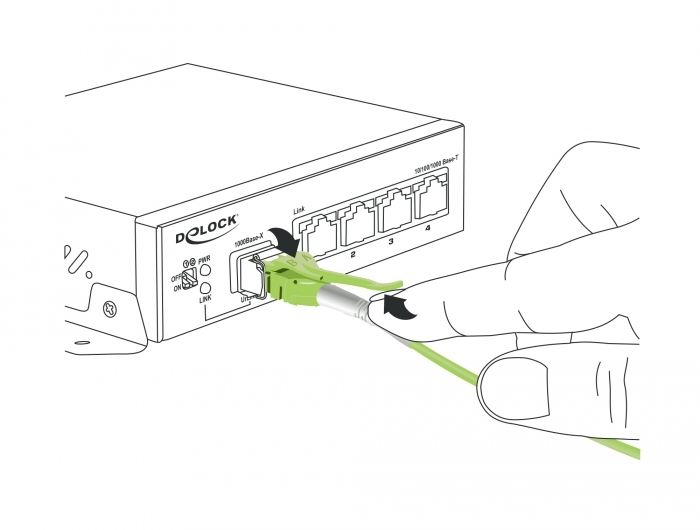

This fibre optical cable by Delock can be used to connect different networking devices, e.g. a NIC with an SFP module to a switch or a media converter. Both conductors share one sheath and one boot, making the cable very space efficient. The extractor lever makes it easy to unplug from high density panels.

System requirements:
• One free LC duplex port

Specification:
• Connectors:
1 x LC Duplex >
1 x LC Duplex
• Multi-mode OM5 cable
• Fibre: 50/125 µm
• Zirconia ceramic ferrule with protection cap
• Uniboot connector

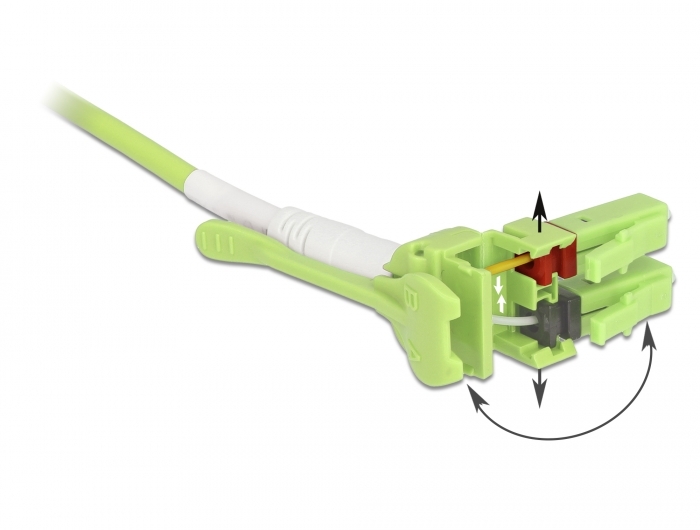

• Extractor lever
• Polarity changeable
• Shared outer sheath
• Cable diameter: ca. 3 mm
• Insertion loss < 0.5 dB
• LS0H (halogen free)
• Colour: limegreen
• Cable length: ca. 10 m

Package content:
• Optical Fibre Cable

Data sheet:
http://www.delock.de/produkt/85692/pdf.html?sprache=en
