Equip Wandgehäuse 19" 12U 540x400mm grau

EQUIP

EWM-12-5440-G

New

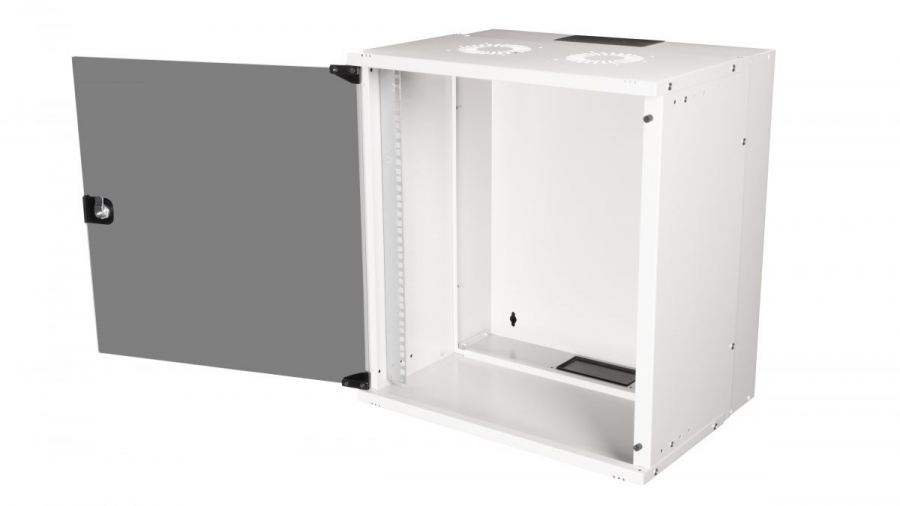

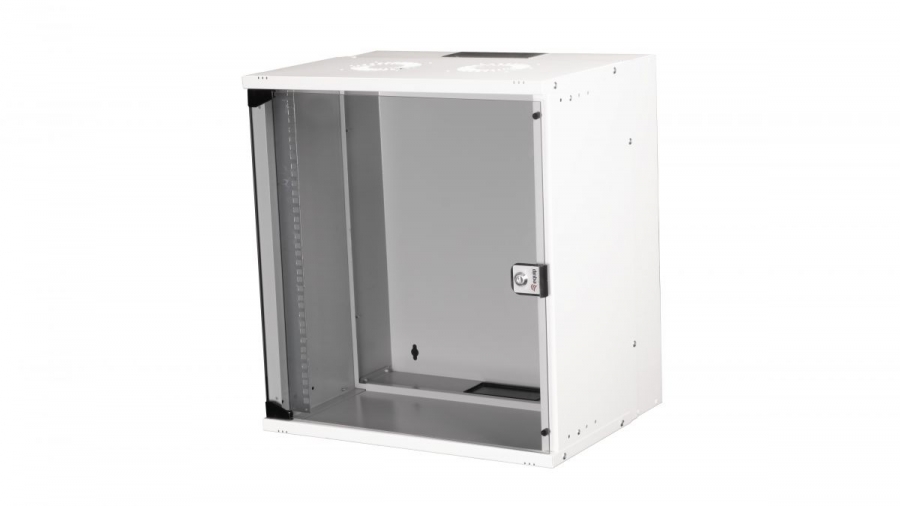

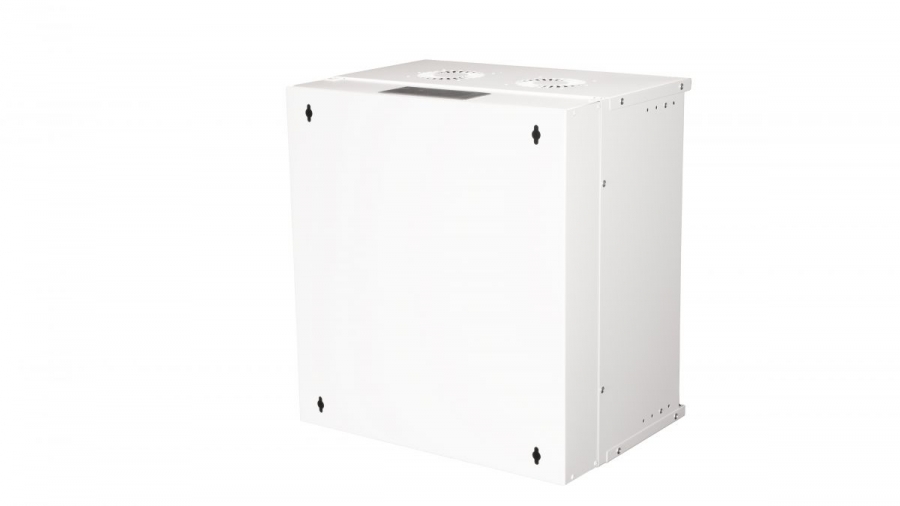

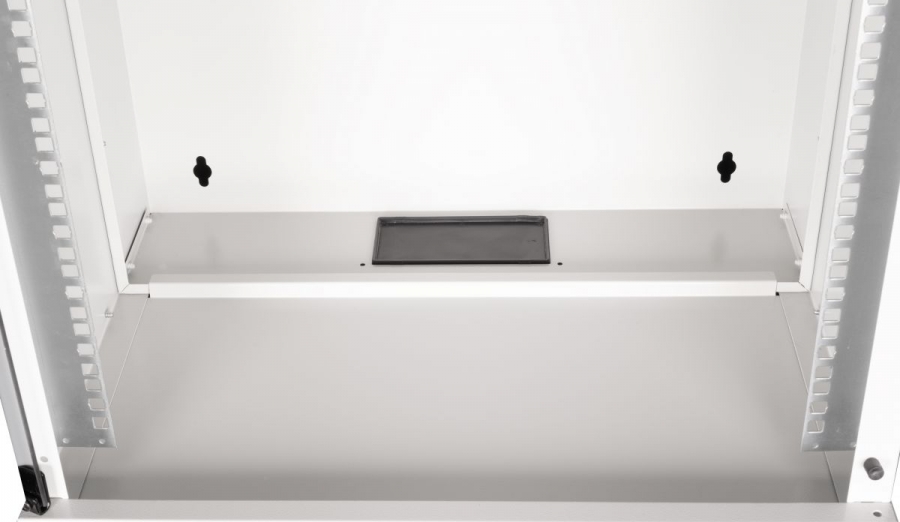

Introducing the Equip Eco Mount Wall Mount Cabinets—designed for seamless integration and efficient management of network components, emphasizing sophisticated cable organization. Constructed from robust 1.5 mm thick steel sheets, these cabinets are paragons of durability and security, ensuring the protection of your valuable equipment. Choose from elegant shades of grey (RAL 7035) and black (RAL 9005) to enhance both functionality and aesthetics. Available in 10“ or 19“ variants, the Equip Eco Mount series offers a smooth experience exclusively for wall-mounted configurations. The door design allows easy reorientation from right to left to suit your spatial requirements. To maintain an optimal operational environment, the cabinets are equipped with integrated ventilation slots at the top.Our design prioritizes effective cable management. The top and bottom each have a cable entry covered with a removable plastic cover for easy cable routing and protection.
We offer a broad range of accessories, like cable management tools and shelves, to meet diverse operational needs. The Equip Eco Mount Wall Mount Cabinets allow you to enhance your IT infrastructure confidently and efficiently. Choose our cabinets for a smarter, more organized, and reliable network solution. Opt for either the 10“ or 19“ model and elevate your IT environment's performance today.
Please note, these cabinets are not pre-assembled. Assembly is straightforward, and we provide an instructional video to guide you through the process.

Rack capacity12U
TypeWall mounted rack
Product colourLight grey
MaterialSteel
Frame typeClosed
Product design2-post
Back door constructionSteel
Front door constructionTempered glass
Side panel constructionSteel
Removable back door
Removable front door
Removable side panels
Side panels included

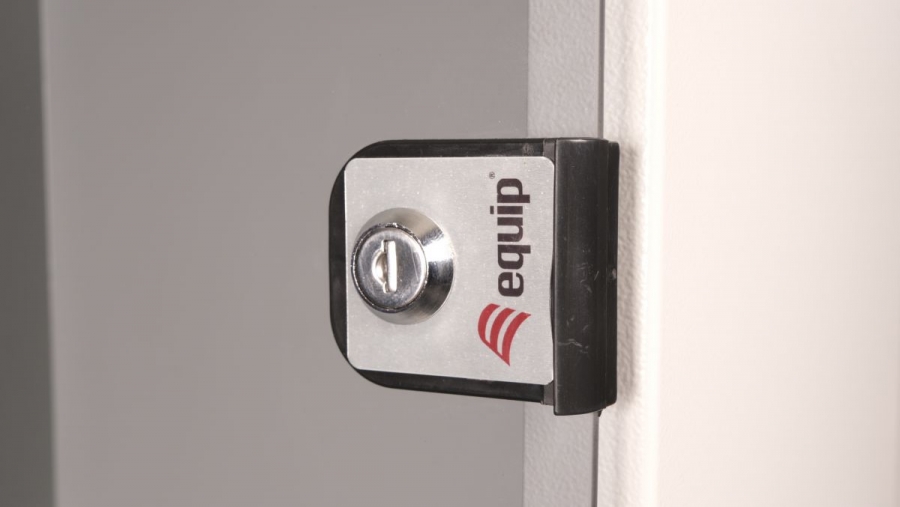

Key lock
Back door key lock
Front door key lock
Side panel key lock
Rack rails
Rack rail thickness1.5 mm
Adjustable stand
Adjustable depth
Adjustable feet
Cooling typePassive
Soundproof
Main PDU
Monitoring
Cable management
Mounting hole shapeSquare
Stabilising foot screw
Castor wheels
Door opening angle200°
Assembly required
Preassembled
Built-in UPS
Size (imperial)31 cm (12.2")
Width149 mm
Depth400 mm
Height596 mm
Inner width49.5 cm
Inner depth39.5 cm
Inner height53.3 cm
Weight12.5 kg
Mounting depth (min)36 cm
Mounting depth (max)38 cm
Nuts included
Number of nuts12
Screws included
Number of screws12
Plinth panel
Temperature sensor
Wall mounting kit
Mounting kit
Grounding kit
Quick installation guide
Manual
Package width577 mm
Package depth597 mm
Package height149 mm
Pallet net height180 cm
Pallet net length130 cm
Pallet net width130 cm
Total carbon footprint2.1375 kg of CO2e
Country of originTurkey
Harmonized System (HS) code853710980019
Master (outer) cases per pallet50 pc(s)
Layers per pallet10 pc(s)
Products per pallet50 pc(s)
