Digitus KVM Switch, 2 Port, 4K30Hz, USB-C/USB/HDMI in, HDMI out, Network

Reference DS-12901

Condition: New

More info

2port Type C KVM with Network Port

New generation KVM switch support USB-C notebook computer|It provides USB console, HDMI display, Hub, network and power to USB-C notebook computer via 1 USB-C cable .

Use one monitor, mouse and keyboard to operate two computers
Support 1x USB-C notebook computer ( incl. Macbook )
Provide LAN connection to USB-C notebook computer via USB-C cable
Support Power Charging to USB-C notebook computer via USB-C ( Power adapter is not included)
Provide 1xUSB3.0 Type C hub to USB-C notebook computer
Support HDMI 4K / 30Hz display
Integrated USB hub with 2 x USB 2.0 ports for peripheral devices
KVM powered via USB bus power or external USB-C power input (optional)
Switching 2 ports via push button or Hotkey
Plug and Play - no drivers necessary

The DIGITUS® 2-port KVM switch with USB-C and network connectivity gives you the ability to control two 4K-capable PCs from a single USB keyboard and mouse. Conveniently switch between the two PCs at the touch of a button, eliminating the need to reconnect all cables. The Gigabit network port provides convenient access to the network via the additional USB-C port. The output to a monitor is done via the integrated HDMI output. Audio signals from the microphone and speakers can also be switched. In addition, another USB-C port and two USB A (2.0) ports are available on the front, which can be used for further peripherals such as USB sticks or external hard drives. Status LEDs on the front of the switch show you the current status at all times. The slim switch is rounded off by the robust metal housing.

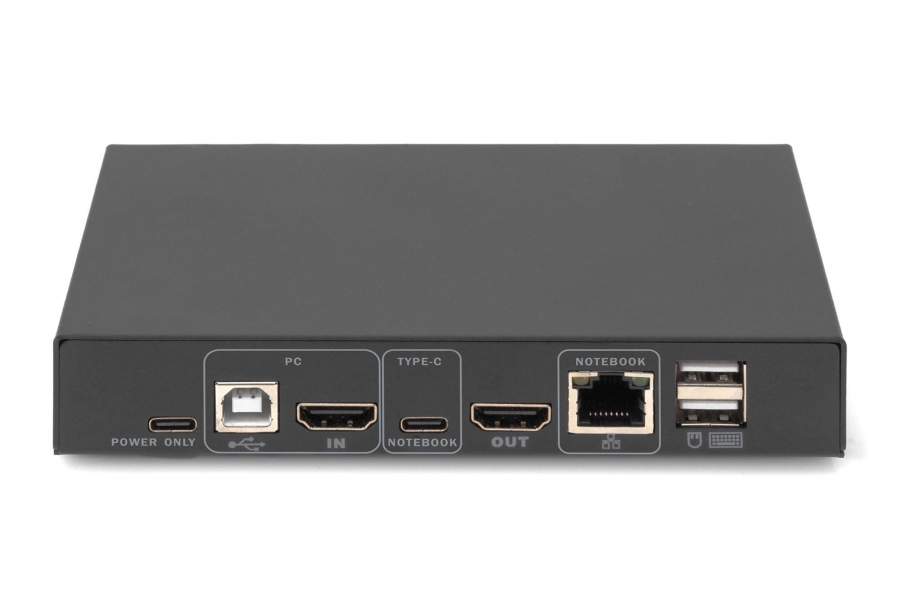

Inputs: 1 x HDMI computer, 1x USB-C computer, 1 x Gigabit network (RJ45), 2 x USB A (keyboard, mouse), 1x USB-C power ( optional)
Output: 1 x HDMI video

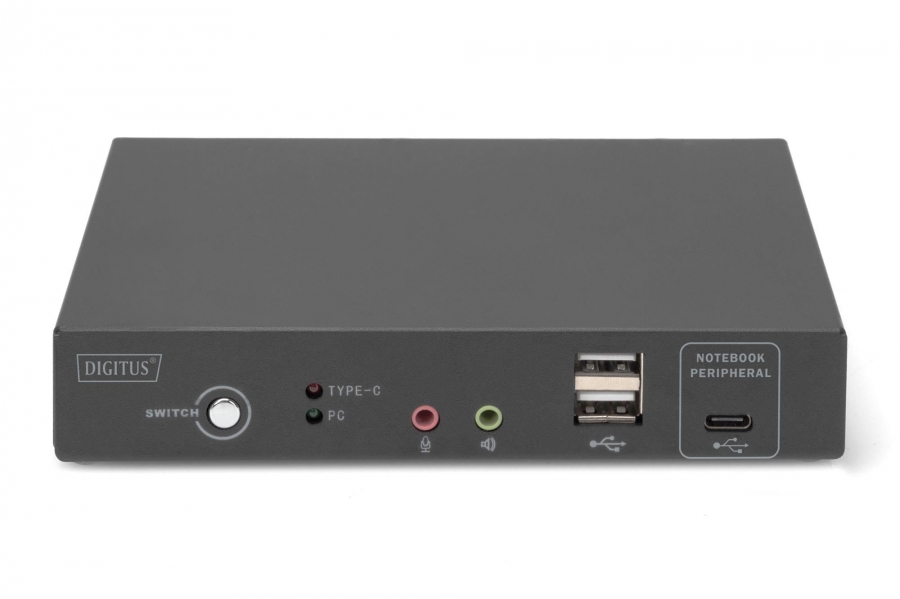

Additional connections on the front: 2 x USB A 2.0, 1 x audio input, 1 x audio output , 1 x USB-C ( for USB-C computer only)
Provide LAN connection to USB-C notebook computer via USB-C cable
Audio in/out: 3.5 mm audio jacks
LED status indicator on front: 2 x, shows active computer
Switch: Switching PC1 / PC2
Switching time: 0.2s
HDMI® version: 1.4
HDCP version: 1.4/2.2
UHD resolution: 3840 x 2160p / 30 Hz
Subsampling: YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0
Bandwidth HDMI: 10.2 Gbps all channels (3.4 Gbps per channel)
Color depth HDMI®: 24/36 bit (all channels).
Power supply via USB-Cport on the rear panel ( Optional )
USB-C Power delivery : 20 V / 5 A / 100 W max.
Operating temperature: 0°C ~ 50°C
Storage temperature: -20°C ~ 60°C
Operating humidity: 0% - 80% RH (non-condensing)
housing material: metal
dimensions: 150 x 88 x 26 mm (WxDxH)
Weight: 400 g
Color: Black

Package content:
1 x KVM-Switch, 2-Port, HDMI , USB-C
1 x QIG
1 x KVM Cables 1.2m
1 x USB-C calbe 0.5m
