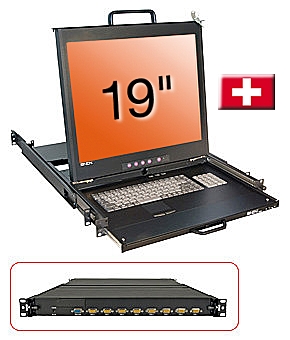

Lindy 19" KVM Terminal with 19" LCD and Integrated 8 Port Modular KVM Switch, CH layout

Specifications & Features

LCD Terminal

• 19” 1U Metal drawer with double ball bearing slide rails on each side and modular KVM Switch insertion option
• LCD monitor and keyboard (CH layout) with touchpad on individual drawers, can be slid and used independently on each other
• Key locking mechanism with 2 keys
• 19” 1280 x 1024 with auto-off function when panel is closed, or when no VGA signal is present, > 50,000 hours LCD backlight lifetime
• OSD for screen adjustments with adjustment buttons near the LCD
• Built in touchpad and keyboard with separate numeric keypad, PS/2 & USB switchable
• External power supply, switching type 100-240VAC 50/60Hz, ~40W with IEC input 12VDC ~3.33A regulated with ~1.6m DC cable 5.5/2.5mm DC connector
• Dimensions: 19”/1U, 50cm depth, 19” rack mountable for 65-95cm front/back rail distance

8 Port KVM Switch

• 8 port KVM switch in a 1U, 19” rackmount size design
• Built-in daisy chain port allows daisy chaining of up to 8 LINDY Uor P series KVM switches to support up to 128 computers
• Local console operation plus optional KVM over IP or KVM over Cat.5 control modules
• Remote mass storage device support for KVM over IP access for version U8/16-IP
• Supports all commonly used operating systems
• Support for PC, Mac and Sun computers with USB ports
• Hot Plug Support - add or remove computers and KVM switches for maintenance without powering down the switch or the connected computers
• High Quality Video – Local console supports display resolutions of up to 1920x1440 with cable lengths up to 10m
• No software required for local or Cat.5 KVM access - easy PC selection via On Screen Display Menu, Push Buttons or Keyboard Hot Keys
• Provides various Hotkeys (Scroll-Lock/ Caps-Lock/ Num-Lock/ L-Alt/ L-Ctrl/ L-Win/ R-Alt/ R-Ctrl/ R-Win) for switching computer ports and other control functions
• Integrated password security protection for up to 8 users + admin with access control list restrictions for the users
• Eight character password protection and search function for server name
• Remote IP enterprise security architecture, password protected using encrypted data transmission either via secured web browser session
• Auto Scan Mode for monitoring computers with adjustable scan time from 5~99 seconds
• Keyboard status is automatically restored when switching between computers
• LED Display for easy status monitoring
• Buzzer sound for port switching confirmation
• Uses special single connector USB/PS/2 + VGA KVM cables with 15 Way Hi-Density connectors at the KVM Switch end
• Maintains continuous keyboard and mouse emulation

Dimensions: 44.5 x 17 x 4.4 cm
