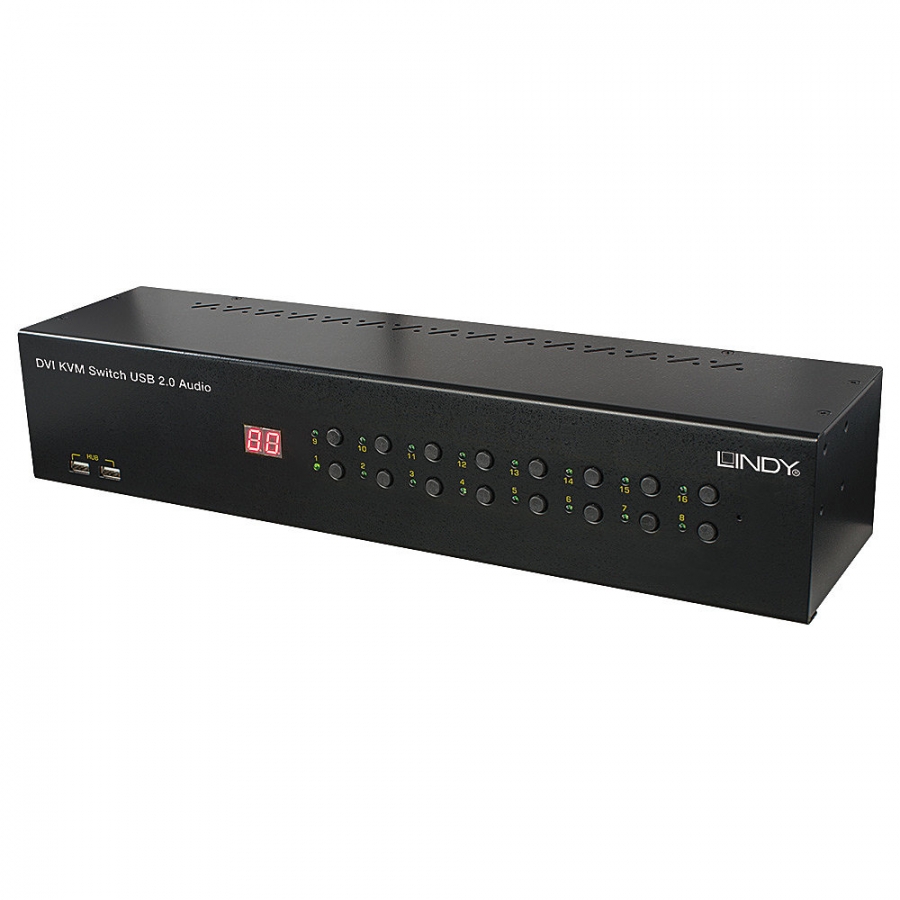

Lindy 16 Port DVI-I Single Link, USB 2.0 & Audio KVM Switch

Specifications

• AV Interface: DVI-I
• Console Interfaces: USB
• Interface Standard: DVI-I, USB 2.0
• Maximum Resolution:
  • DVI: 1920x1200@60Hz
  • VGA: 2048x1536@30Hz
• HDCP Support: -
• Supported Audio: Analog Stereo
• Separate Audio Ports: 2 x 3.5mm (Female)
• Serial Interface: -
• Console Number: 1
• Max Number PC/Server: 16
• Cascadable: No
• Switching Method: Port Buttons, Hotkey (Configurable)
• 19" Rack Mountable: Yes (1U - Rack Mount Brackets included)
• Special Features: Shared USB Ports

Connectors

• Console Interfaces: DVI-I (Female), 2 x USB Type A HID (Female), 2 x 3.5mm (Female)
• PC/Server Interfaces: 16 x DVI-I (Female), USB 2.0 Type B (Female), 2 x 3.5mm (Female)
• Other Interfaces: 2 x USB 2.0 Type A (Female) Shared Ports (Front Panel)
• Power: 5.5/2.5mm DC socket

Physical Properties

• Dimensions WxDxH: 407x110x91mm (16.02x4.33x3.58in)
• Housing Material: Metal
• Net Weight: 2.1kg (4.63lb)
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 0~90% RH (non-condensing)
• Power Requirements: 12VDC 3A
• Colour: Black

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 570x245x105mm (22.44x9.65x4.13in)
• Gross Weight: 3.2kg (7.05lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

• KVM Switch
• 2 x 19" Rack Mount Bracket With Screws
• Multi-Country PSU (UK, Euro, US, AUS)
• LINDY Manual

Purchasing Information

• No.: 39318
• EAN: 4002888393188
