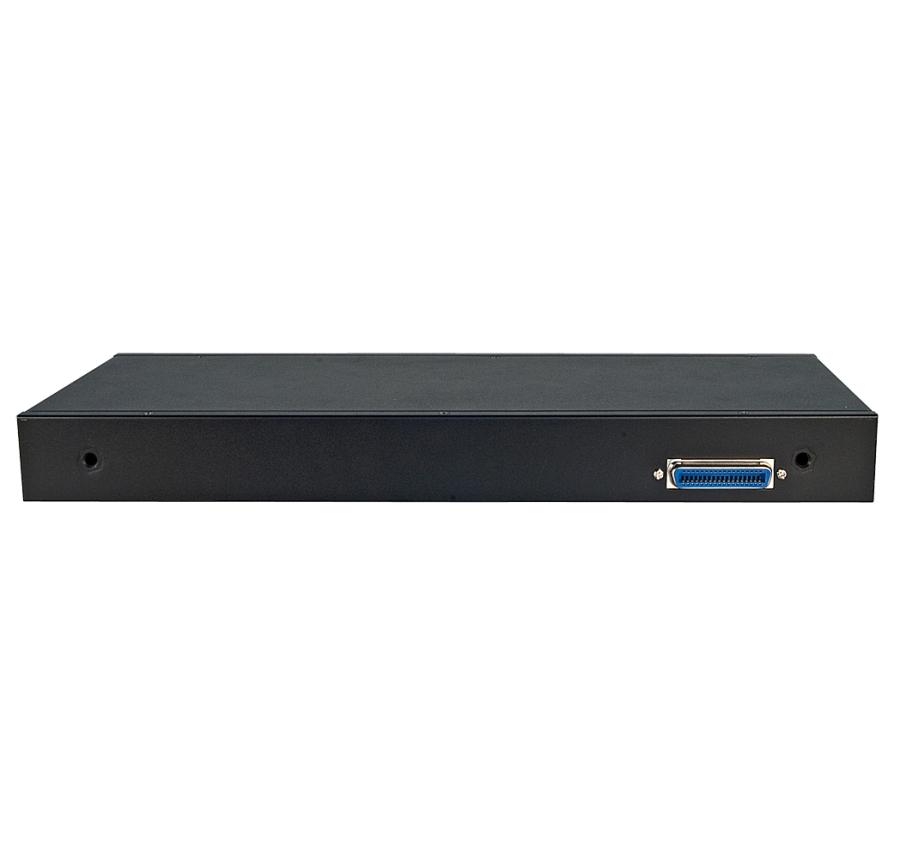

Lindy 8 Port VGA & USB Combo KVM Switch for LCD Console

Specifications:

• AV Interface: VGA
• Console Interfaces: USB
• Interface Standard: VGA, USB 2.0
• Maximum Resolution: VGA: 1920x1200@30Hz
• HDCP Support: -
• Supported Audio:
• Separate Audio Ports:
• Serial Interface: -
• Console Number: 1
• Max Number PC/Server: 8
• Cascadable: Yes
• Switching Method: OSD, Hotkey (configurable)
• 19" Rack Mountable: Yes (1U - Rack Mount behind a Lindy LCD Terminal)

Connectors:

• Console Interfaces: Centronics CN36 (Female) only for Lindy LCD Terminal
• PC/Server Interfaces: 8 x VGA (Female)
• Other Interfaces: 1 x DaisyChain Port (1 x VGA Female)
• Power: 5.5/2.1mm DC socket

Physical properties:

• Dimensions (approx.) WxDxH: 420x180x44mm (16.53x7.09x1.73in)
• Housing Material: Metal
• Net Weight: 1.8kg (3.97lb)
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 0~90% RH (non-condensing)
• Power Requirements: 12VDC 3.3A
• Colour: Black

Miscellaneous:

• Packaging Type: Carton box
• Packaging Dimensions: 530x205x57mm (20.87x8.07x2.24in)
• Gross Weight: 2.2kg (4.85lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package content:

• KVM Switch
• 2 x brackets with screws
• Quick Start Guide

Purchasing information:

• No.: 39525
• EAN: 4002888395250
