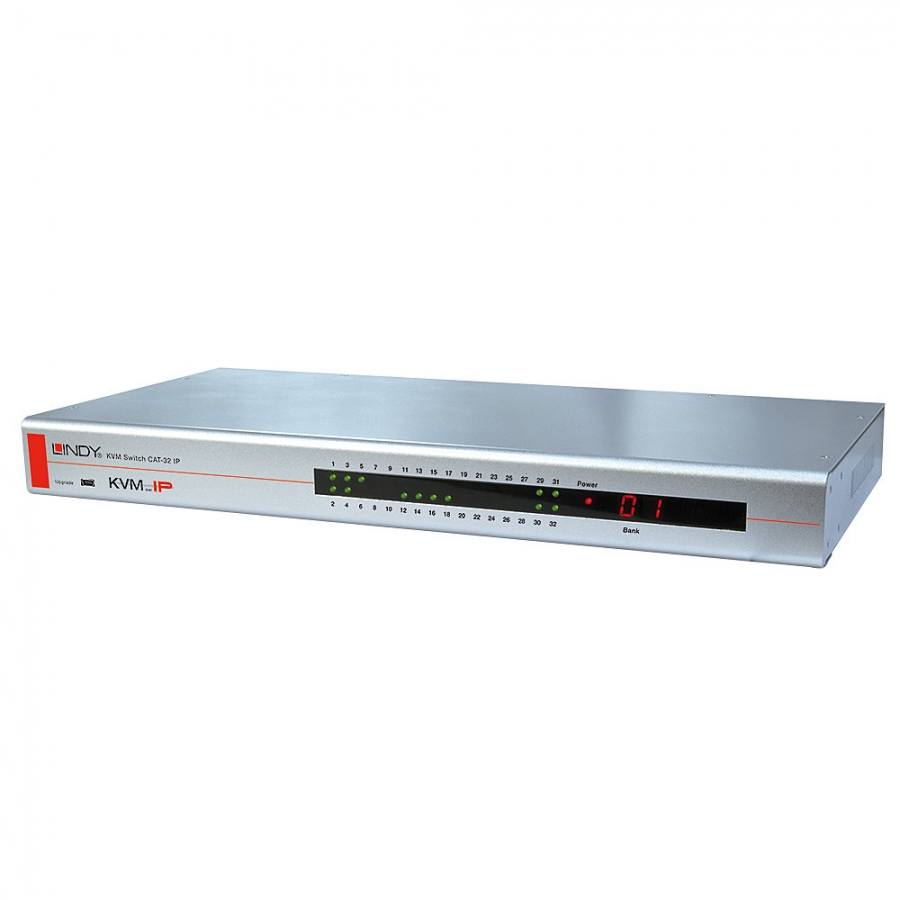

Lindy 32 Port VGA, USB & PS/2 Cat-32 Combo KVM Switch

Specifications

• AV Interface: VGA
• Console Interfaces: USB, PS/2
• Interface Standard: VGA, USB 2.0, PS/2
• Maximum Resolution: VGA: 1920x1200@30Hz
• HDCP Support: -
• Supported Audio: -
• Separate Audio Ports: -
• Serial Interface: -
• Console Number: 1
• Max Number PC/Server: 32
• Cascadable: Yes
• Switching Method: OSD, port buttons, Hotkey (configurable)
• 19" Rack Mountable: Yes (1U - Rack Mount Brackets included)
• Special Features: -

Connectors

• Console Interfaces: VGA (Female), 2 x USB Type A HID (Female), 2 x PS2 (Female)
• PC/Server Interfaces: 32 x RJ45 (Female)
• Other Interfaces: 2 x DaisyChain Ports (1 x VGA Female + 1 x VGA Male)
• Power: 5.5/2.5mm DC socket

Physical Properties

• Dimensions (approx.) WxDxH: 440x210x44mm (17,32x8,27x1,73in)
• Housing Material: Metal
• Net Weight: 1.5kg (3.31lb)
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 0~90% RH (non-condensing)
• Power Requirements: 9VDC 2A
• Colour: Silver

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 547x263x106mm (21,54x10,35x4,17in)
• Gross Weight: 3.5kg (7.72lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Content

• KVM Switch
• 2 x 19" Rack Mount Bracket With Screws
• Multi-Country Power Supply (UK, Euro, US, AUS)
• FW update cable (SubD 9 pin Female to HD15 Female ~1m)
• Daisy Chain Cable (HD15 M/F ~0,2m)
• LINDY Utilities and Manuals CD
• LINDY Manual

Purchasing Information

• No.: 39631
• EAN: 4002888396318
