Equip Serverschrank 19" 12U 600x450mm schwarz

EQUIP

EPM-12-6045-B-CBAA

New

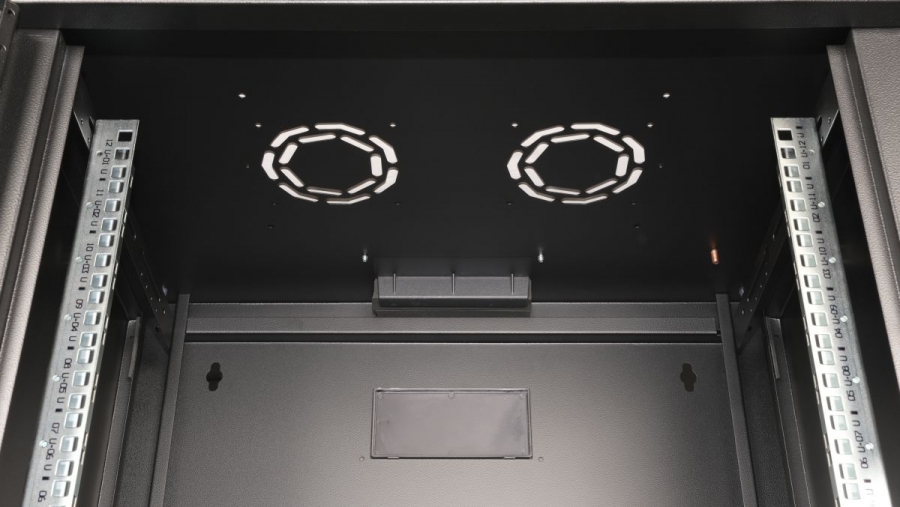

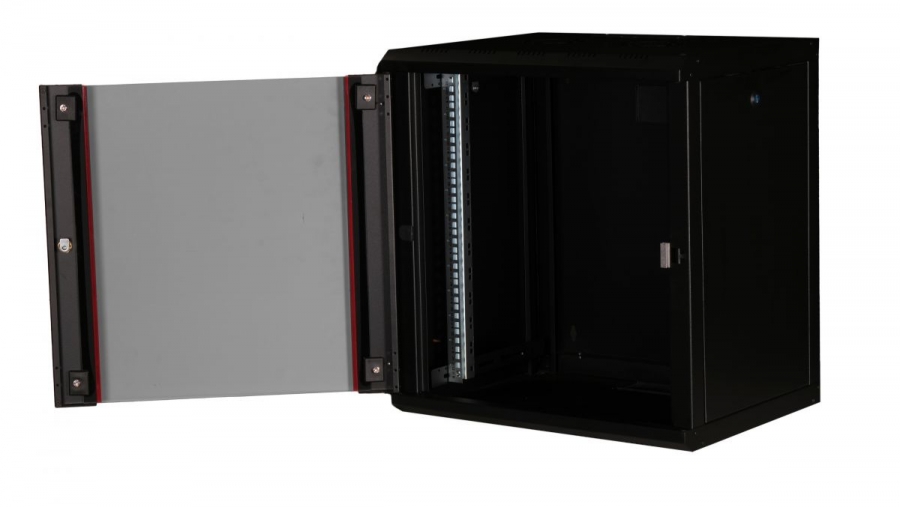

Our Wall Mounting 'Pro Mount' Cabinets are tailored for a hassle-free and efficient setup of both active and passive network components, emphasizing sleek cable management. Constructed from steel sheets up to 1.5 mm thick, every rack stands out for its robustness and durability. These cabinets are beautifully finished with a powder coating in shades of grey (RAL 7035) and black (RAL 9005). Wall mounting has been simplified for users, and for those preferring standalone configurations, individual leveling feet or castors are available. The door and side panels are designed for easy detachment, with the option to switch the door's orientation from right to left. For enhanced air circulation, the roof features integrated ventilation slots. Each cabinet is equipped with a set of two pre-mounted 483 mm (19”) profile rails. These rails are galvanized, feature height unit markings readable from both directions, and are adjustable in depth. The back frame also incorporates 483 mm (19”) punch-outs. Prioritizing efficient cable management, the roof boasts a sliding cable entry panel with a rubber seal. Punched-out cable entries with plastic covers are found on the rear wall and base, and the rear frame offers brushes on both the top and bottom. To fulfill a variety of operational demands, an extensive range of accessory options, such as cable management tools and shelves, is available.

Rack capacity12U
TypeWall mounted rack
Product colourBlack
MaterialSteel
Frame typeClosed
Product design2-post
Back door constructionSteel
Front door constructionTempered glass
Side panel constructionSteel
Removable back door
Removable front door
Removable side panels
Side panels included
Key lock
Back door key lock
Front door key lock
Side panel key lock
Rack rails
Rack rail thickness1.5 mm
Adjustable stand
Adjustable depth
Adjustable feet
Cooling typePassive
Soundproof
Main PDU
Monitoring
Cable management
Mounting hole shapeSquare
Stabilising foot screw
Castor wheels
Door opening angle210°
Assembly required
Preassembled
Built-in UPS
Size (imperial)34 cm (13.4")
Width450 mm
Depth600 mm
Height640 mm
Inner width59.5 cm
Inner depth44 cm
Inner height53.3 cm
Weight22.5 kg
Mounting depth (min)30.5 cm
Mounting depth (max)37 cm
Nuts included
Number of nuts8
Screws included
Number of screws8
Plinth panel
Temperature sensor
Wall mounting kit
Mounting kit
Grounding kit
Quick installation guide
Manual
Package width2500 mm
Package depth520 mm
Package height690 mm
Pallet gross weight316 kg
Pallet net length110 cm
Pallet net width2.22 m
Pallet net weight16 kg
Total carbon footprint3.8475 kg of CO2e
Country of originTurkey
Harmonized System (HS) code853710980019
Master (outer) cases per pallet12 pc(s)
Layers per pallet1 pc(s)
Products per pallet12 pc(s)
