Digitus Ventilators for use in ventilator units for network and server cabinets

Digitus Ventilators for use in ventilator units for network and server cabinets

Digitus

DN-19 FAN

New

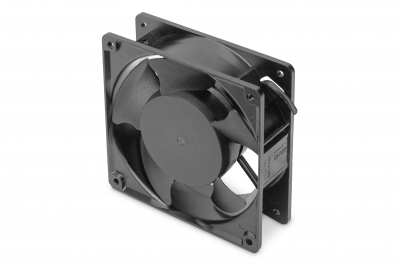

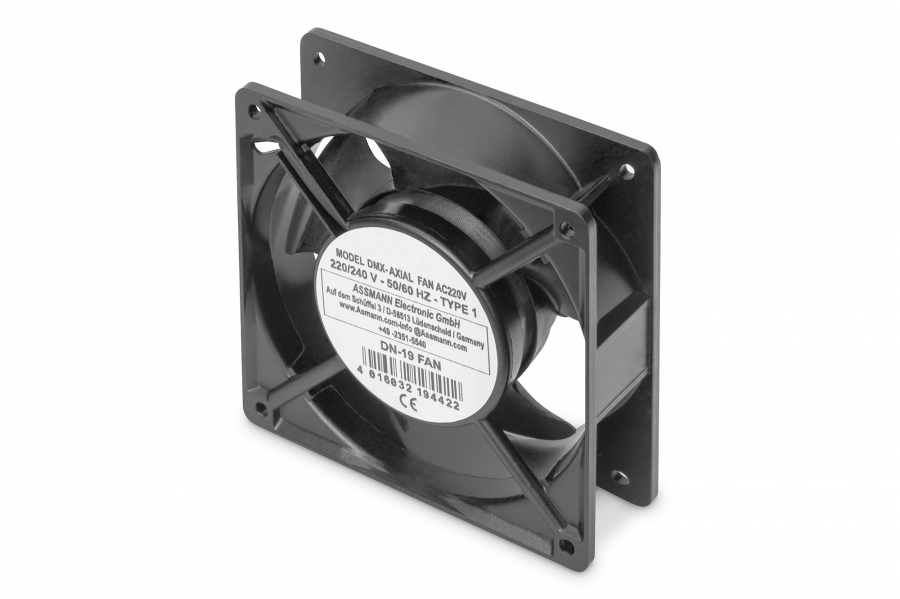

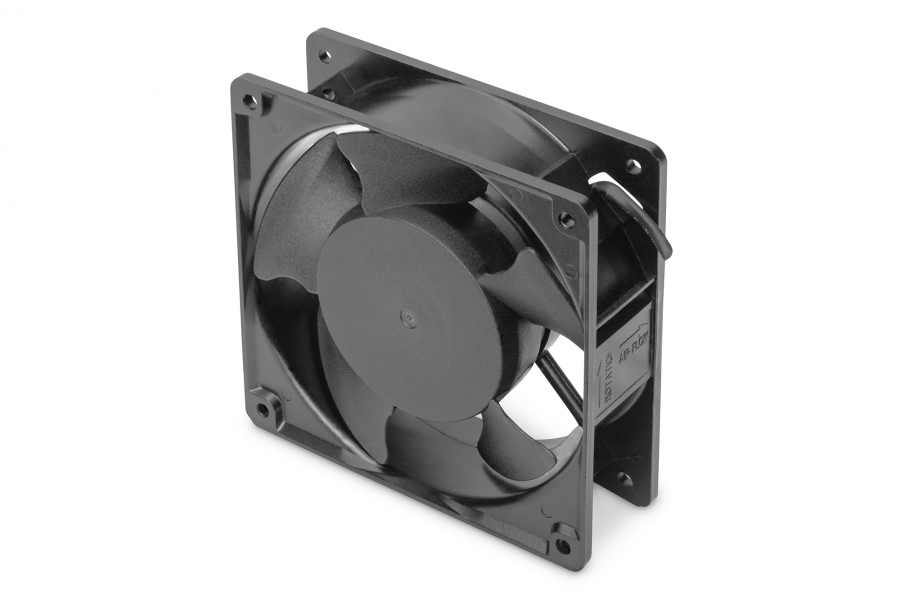

Fan replacement for fan units 138 m³/h air circulation, 47 dB/m noise level

This DIGITUS® 483 mm (19") accessory was developed for the demanding requirements placed on IT infrastructure and manufactured according to German quality standards.

Serves as replacement ventilator for ventilator units from DIGITUS®
Can alternatively be commissioned as an individual ventilator

The individual ventilator from DIGITUS® serves as replacements to exchange with existing ventilator units from DIGITUS® for network and server cabinets. Alternatively, the ventilator can also be individually wired and commissioned. For example, it can serve as an extension to the DIGITUS® wall mounting cabinets for outdoor areas (e.g.: DN-19 12-U-I-OD) in which it can simply be snapped in on the inside in front of the existing filter.

Color: black, RAL 9005
Air flow: 152.9 m3/min
Filter: false
For cabinet series: all
Inch form factor (IEC 60297): 482.6 mm (19")
Mounting area: Roof
Quantity of mounted fans: 1
Dimensions: 120 x 120 x 38 mm
Weight: 530 g
1-phase
Power supply: 230 VAC
Frequency: 50/60 Hz
Power output: 0.14/0.12 A
Power input: 22/21 W
Speed: 2700/3100 RPM
Air circulation: 161.40 / 195.38 m³/h
Noise level: 42/47 dbA
Operating temperature: -30 °C to +75 °C
Life cycle: 50000 h
Housing material: Die-cast aluminum alloy
Caster material: UL 94-0 plastic
Motor protection: Impedance protected
Ball bearing

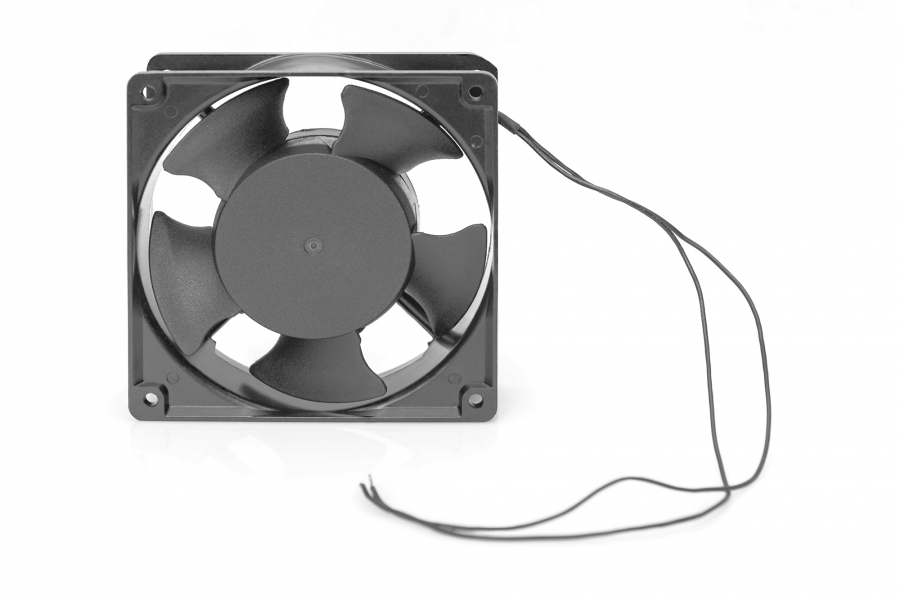

Connection cable: Lead wires

Package content:
1 x Ventilator

Platums(cm)16
Grums(cm)27
Augstums(cm)5
Svars(kg)0.473333
Tilpums(cm3)2160
Izcelsmes valstsTR
