> >>>Digitus Roof Cooling Unit for Unique & Varioflex-N Network Cabinets & Dynamic Basic Network- and Server Cabinets
Digitus Roof Cooling Unit for Unique & Varioflex-N Network Cabinets & Dynamic Basic Network- and Server Cabinets
Previous Next

Digitus Roof Cooling Unit for Unique & Varioflex-N Network Cabinets & Dynamic Basic Network- and Server Cabinets

Digitus

DN-19 FAN-2-N

New

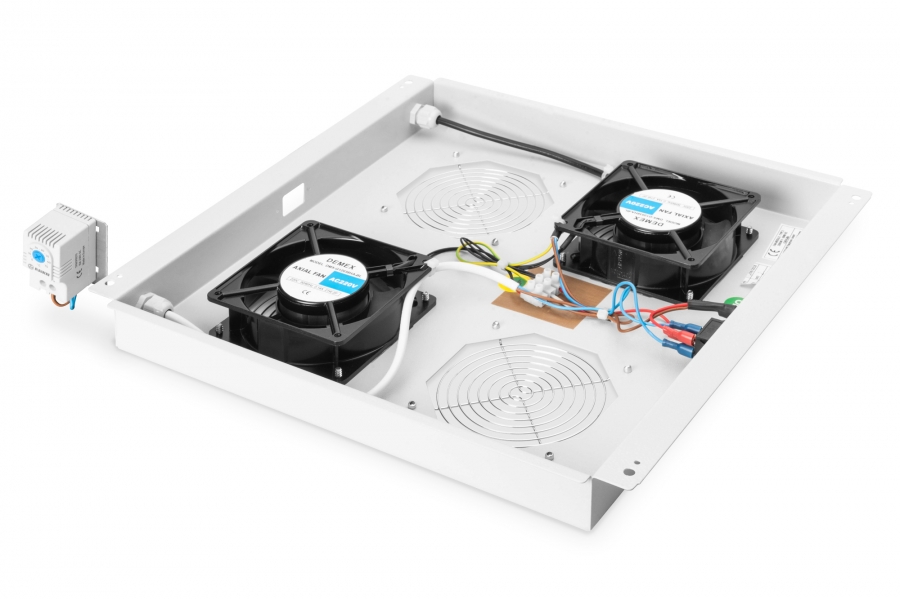

Roof ventilation unit, 2 fans, grey for network cabinets Unique, Varioflex-N, Dynamic

The DIGITUS 483 mm (19") equipment is made for high demand IT-infrastructure solutions, produced on German standards.

For installation into top-floor module

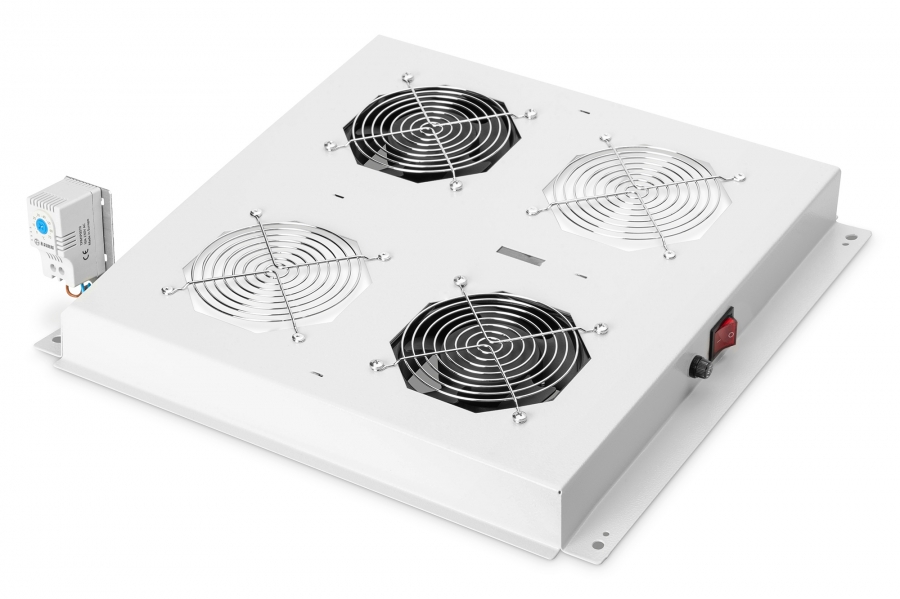

The Roof Ventilation Units are suitable for all network cabinets of the Unique & Varioflex-N Series as well as for all network- and server cabinets of the Dynamic Basic Series. The installation in the roof module of the cabinet can be done quick and easy. A switch as well as an adjustable thermostat provides best options for customizations. The model is available in color grey (RAL 7035) and black (RAL 9005), equipped with either two or four fans.

Color: light grey, RAL 7035
Air flow: 4.6 m3/min
Filter: false
For cabinet series: Varioflex-N, Unique Network, Dynamic Basic
Inch form factor (IEC 60297): 482.6 mm (19")
Mounting area: Roof
Quantity of mounted fans: 2
For installation into top-floor module
2 fans
incl. thermostat, adjustable from 0 °C up to +70 °C

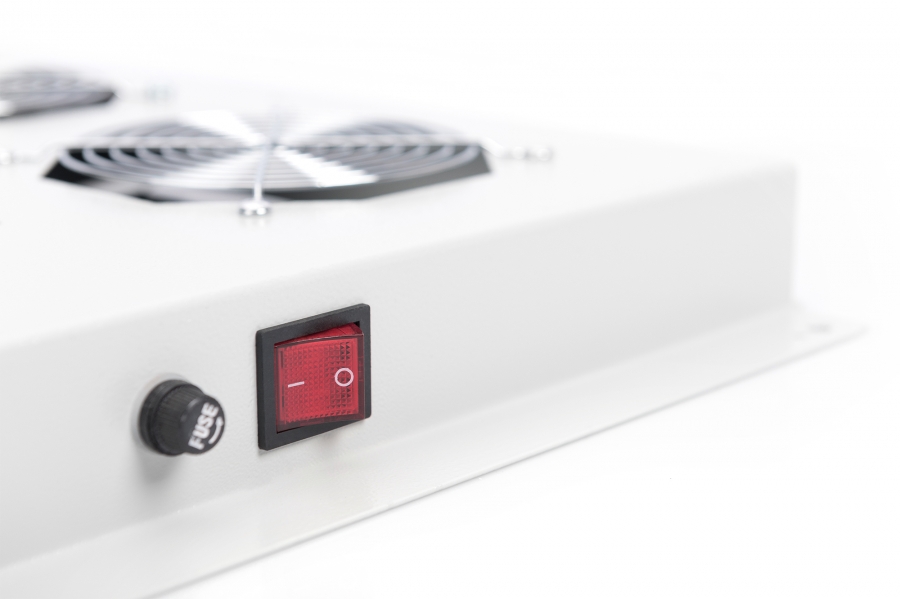

On/off switch
Air flow: 4.6 m³/min. (276 m³/h)
1.8 m cable with safety plug CEE 7/7 (Type-F)
IP21 protection class guaranteed when installed under the roof in Unique & Varioflex-N Series network cabinets
Protection class IP21 guaranteed for installation under the roof in network cabinets from the Unique & Varioflex-N series

Package content:
Fixing material

Platums(cm)47
Grums(cm)41
Augstums(cm)8
Svars(kg)3.25556
Tilpums(cm3)15416
Izcelsmes valstsTR
