Digitus Roof Cooling Unit for Unique Server Cabinets

Digitus

DN-19 FAN-6-SRV

New

Roof vent. unit, Unique server racks 6 fans, thermostat, switch, grey (RAL 7035)

The DIGITUS 483 mm (19") equipment is made for high demand IT-infrastructure solutions, produced on German standards.

For installation into top-floor module

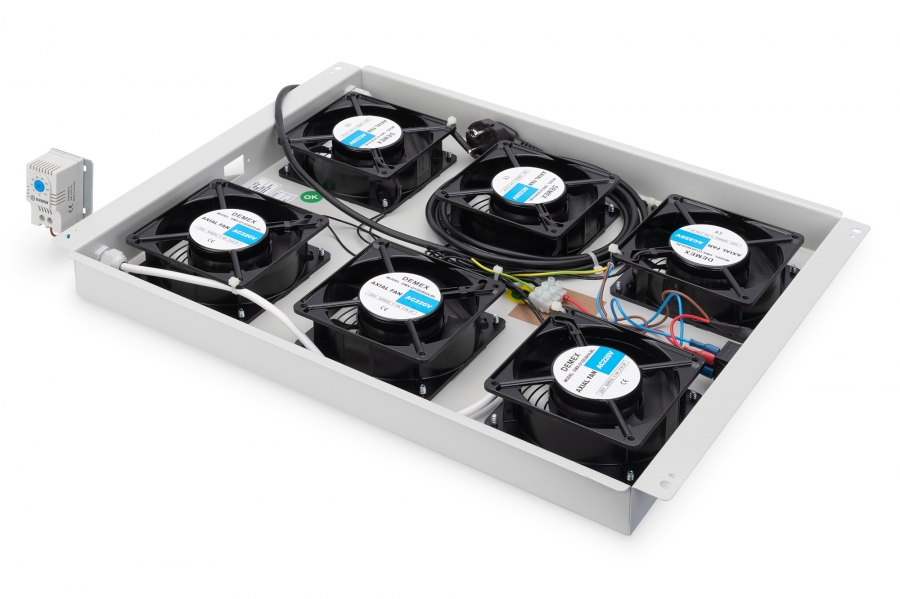

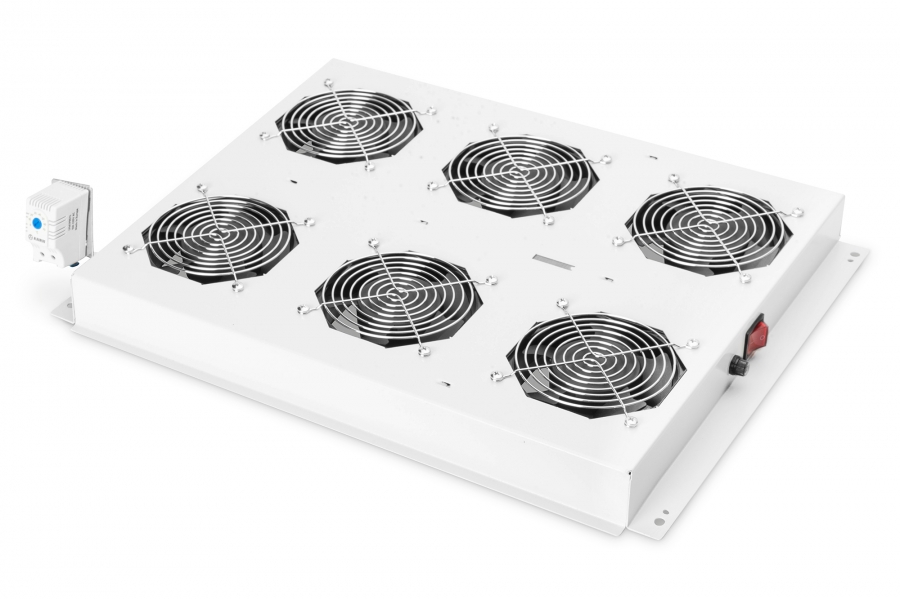

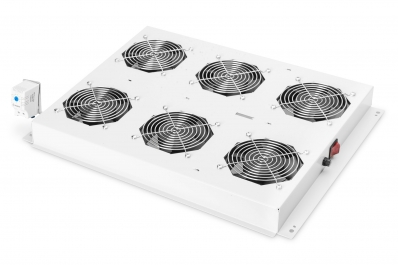

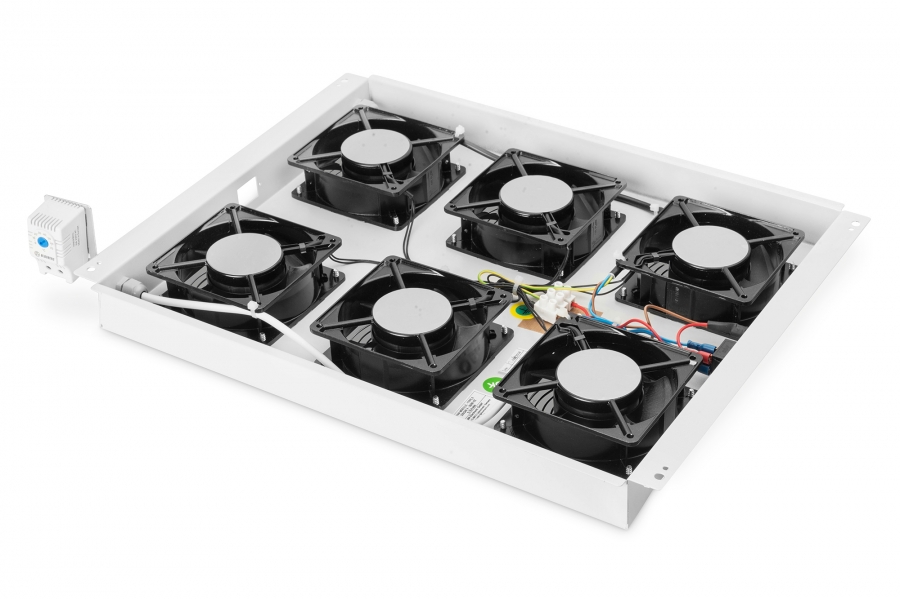

The Roof Ventilation Units are suitable for all server cabinet of the Unique series. The installation in the roof module of the cabinet can be done quick and easy. A switch as well as an adjustable thermostat provide best options for customizations. The model is available in standard color grey (RAL 7035) and black (RAL 9005), equipped with either four or six fans.

Color: light grey, RAL 7035
Air flow: 13.8 m3/min
Filter: false
For cabinet series: Unique Server
Inch form factor (IEC 60297): 482.6 mm (19")
Mounting area: Roof
Quantity of mounted fans: 6
For installation into top-floor module
6 fans
incl. thermostat, adjustable from 0 °C up to +70 °C
On/off switch
Air flow: 13.8 m³/min.
1.8 m cable with CEE 7/7 (Type-F) plug
1.8 m cable with CEE 7/7 (Type F) plug

Package content:
Fixing material

Platums(cm)53
Grums(cm)56
Augstums(cm)7
Svars(kg)5.4
Tilpums(cm3)20776
Izcelsmes valstsTR

19" accessories
