Digitus Ventilation Unit for variable 483 mm (19\") installation

Digitus

DN-19 FAN-2-HO-SW

New

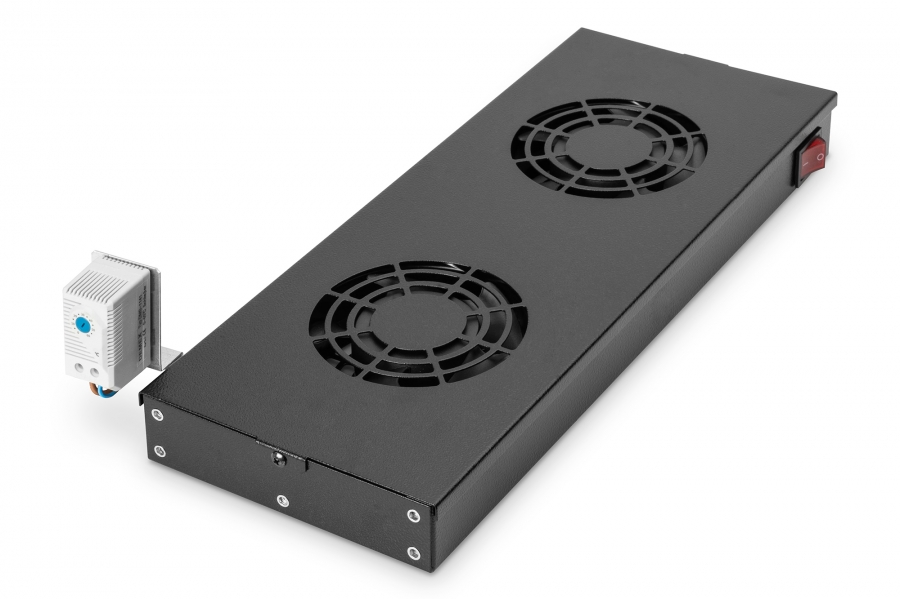

Ventilation unit for 483 mm (19") installation 2 fans, thermostat, switch, black (RAL 9005)


For installation into 483 mm (19") unit

The Roof Ventilation Units are variable mountable into 483 mm (19") cabinets. Each fan unit comes with two sets of mounting brackets. With the standard set you can install your fan unit into any height unit space of your network- or server cabinet. The second bracket set makes the fan unit possible to be mounted into the roof of 483 mm (19") network- or server cabinets of the varioFLEX series. A switch as well as an adjustable thermostat provides best options for customizations. The model is available in standard color grey (RAL 7035) and black (RAL 9005), equipped with either two or four fans.

Color: black, RAL 9005
Air flow: 4.6 m3/min
Filter: false
For cabinet series: all
Inch form factor (IEC 60297): 482.6 mm (19")
Mounting area: 482.6 mm (19")
Quantity of mounted fans: 2
For installation into 483 mm (19") unit
2 fans

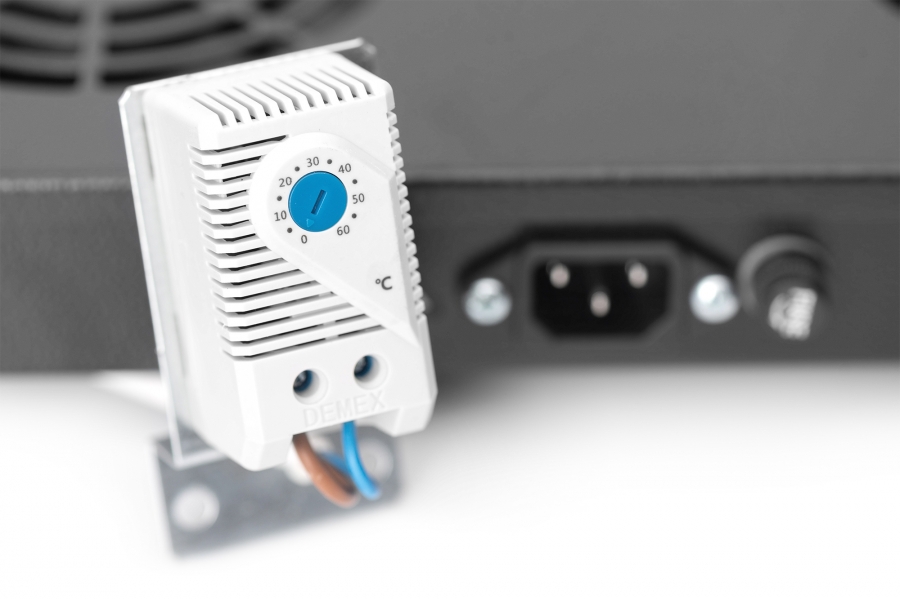

incl. thermostat, adjustable from 0 °C up to +70 °C

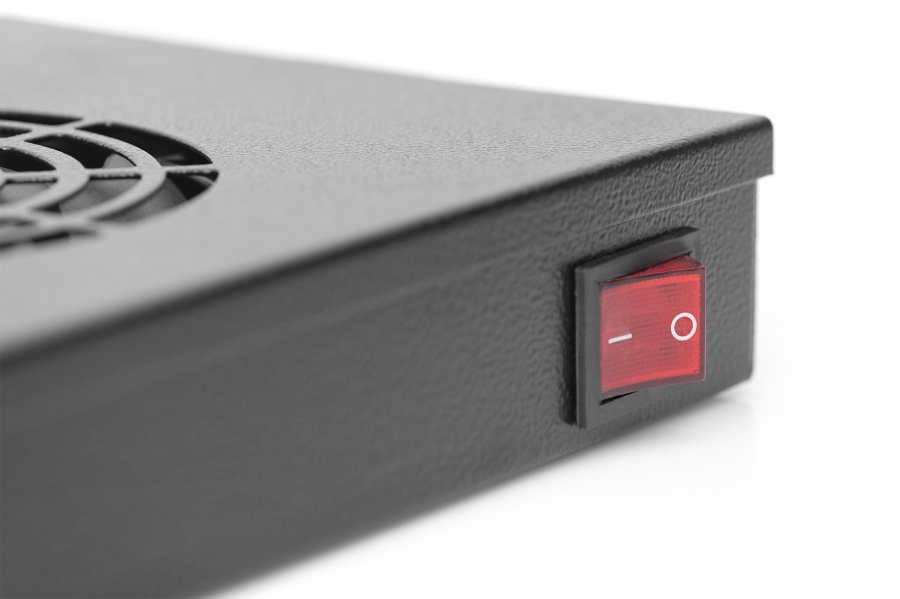

On/off switch
Air flow: 4.6 m³/min.
1.8 m cable with CEE 7/7 (Type-F) plug
1.8 m cable with CEE 7/7 (Type F) plug

Package content:
Mounting brackets for varioFLEX
Mounting brackets for 19" profile rails
Power cable
Fixing material

Platums(cm)51
Grums(cm)28
Augstums(cm)5
Svars(kg)3.34444
Tilpums(cm3)7140
Izcelsmes valstsTR
