> >>>Digitus LED Lighting
Digitus LED Lighting

Digitus LED Lighting

Digitus

DN-19 LIGHT-3

New

Add to Compare
LED lighting, magnetic two sensor modi, incl. power adapter

The perfect light source for the inside of your enclosure. Installable horizontally or vertically via magnets.

Energy saving and cost effective
Maximum light power without warming phase
Long life time
Energy efficiency rating: F
Two different modes: Automatic door mode ("Blocking type") or touch mode ("Waving type")
No heat production
Compact design and flexible usage via magnet strip (285 mm)
M2.5 screws allow easy installation when magnet is not used

The LED Lighting is flexible usable due to its compact design and the mounting with magnets. It can be mounted horizontally or vertically inside of your 483 mm (19") cabinet and ensures an optimized lighting via efficient LED lights, which have the maximum light power fromt the start, without warming phase. The two different modes (adjustable with a switch) offer a particularly user friendly handling. The automatic door mode will switch on the light, due to the sensor, automatically when you open the door of your 483 mm (19") cabinet and also switch off the light when the door is being closed. Alternatively you can use the touch mode for manual use. In this case just wave in front of the sensor one time for switching on the light and a second time to switch off the light. A power adapter is included in the standard delivery content, therefore the LED Lighting is usable immediatly.

Nominal input voltage: 100-240 V
Input frequency: 50/60 Hz
Operating voltage: DC 12 V, 1000 mA
Performance: 12 W
Control: IR sensor
Power adapter plug: CEE 7/16 (Type C) Europlug
LED DC Input connector: 3.5 mm; 1,5 m length
Maximum total current draw: 250 mA @ 220-240 V
Lum. Flux: 223 lm
Light source: 6500K LED
Consumption in kWh/1000 h: 0.003 kwh
Durability in hours: 30000
Elevation (above MSL) operating storage: 0-3000 m / 0-15 000 m
Storage-/Operation temperature: -25 °C to +65 °C / -20 °C to +45 °C
Humidity operating storage: 0-95 % RH Non-condensing 0-95 % RH Non-condensing
Aluminum housing
Color: Black plastic & grey aluminum
CE & ROSH compliant
Start-up time until 60% of max. luminous flux has been reached: <1 sec.

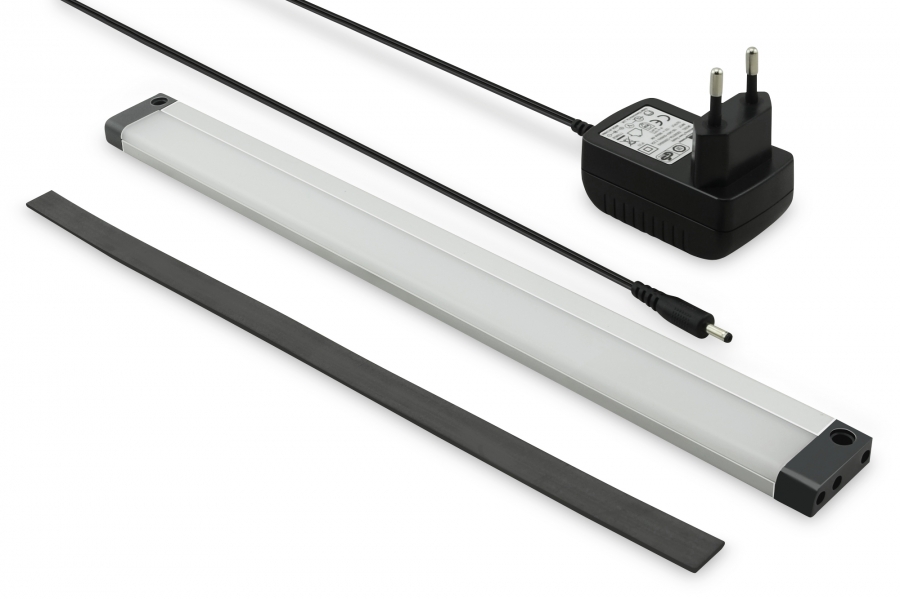

Package content:
LED Lighting

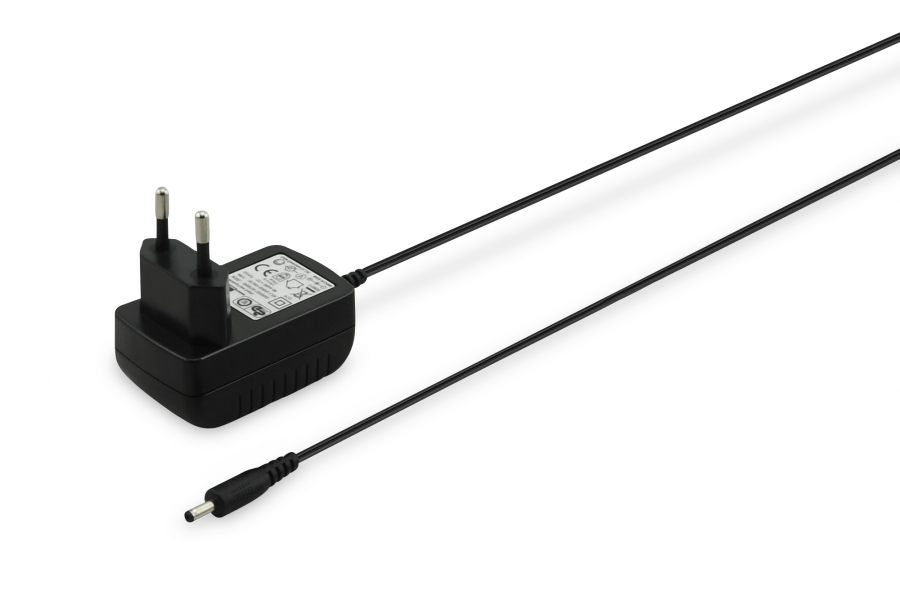

Power adapter
Magnet strip

Platums(cm)30.4
Grums(cm)2.8
Augstums(cm)1.6
Svars(kg)0.35
Tilpums(cm3)136.192
Izcelsmes valstsHK
